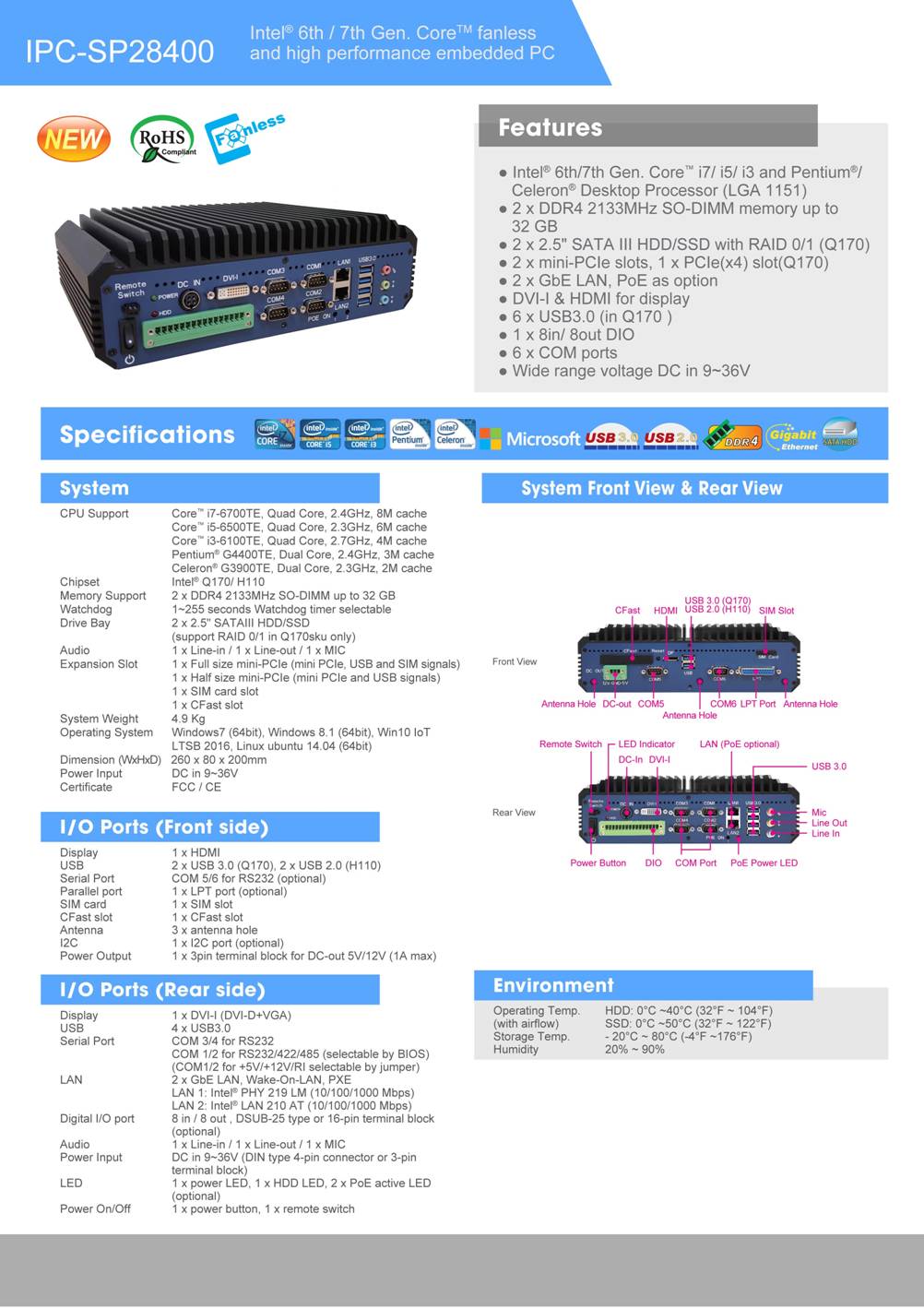

IPC-SP28400Q

IPC-SP28400H

6th / 7th Gen. Intel® CoreTM Fanless and High Performance Embedded PC







   FEATURES



> 6th/7th Gen. Intel® Core™ i3/ i5/ i7 and Pentium®/ Celeron® Desktop Processor (LGA 1151)

> 2 x DDR4 2133MHz SO-DIMM memory up to 32 GB

> 2 x 2.5" SATA III HDD/SSD with RAID 0/1 (IPC-SP28400Q)

> 2 x mini-PCIe slots, 1 x PCIe(x4) slot

> 2 x GbE LAN, PoE as option

> DVI-I & HDMI for display

> 6 x USB3.0 (IPC-SP28400Q)

> 1 x 8in/ 8out DIO

> 6 x COM ports

> Wide range voltage DC in 9~36V











Specifications



>> Systems



CPU Support

Core™ i7-6700TE, Quad Core, 2.4GHz, 8M cache , Core™ i5-6500TE, Quad Core, 2.3GHz, 6M cache , Core™ i3-6100TE, Quad Core, 2.7GHz, 4M cache , Pentium® G4400TE, Dual Core, 2.4GHz, 3M cache , Celeron® G3900TE, Dual Core, 2.3GHz, 2M cache

Chipset

Intel® Q170 (IPC-SP28400Q) / H110 (IPC-SP28400H)

Memory Support

2 x DDR4 2133MHz SO-DIMM up to 32 GB

Watchdog

1~255 seconds Watchdog timer selectable

Drive Bay

2 x 2.5" SATAIII HDD/SSD (support RAID 0/1 for IPC-SP28400Q only)

Audio

1 x Line-in / 1 x Line-out / 1 x MIC

Expansion Slot

1 x Full size mini-PCIe (mini PCIe, USB and SIM signals) , 1 x Half size mini-PCIe (mini PCIe and USB signals) , 1 x SIM card slot , 1 x CFast slot

System Weight

4 Kg (TBD)

Operating System

Windows7 (64bit), Windows 8.1 (64bit), Win10 IoT LTSB 2016, Linux ubuntu 14.04 (64bit)

Dimension (W x H x D)

260 x 80 x 200mm (TBD)

Power Input

DC in 9~36V

Certificate

FCC / CE



>> I/O Ports



(Front Side)





Display

1 x HDMI

USB

2 x USB 3.0 (IPC-SP28400Q), 2 x USB 2.0 (IPC-SP28400H)

Serial Port

COM 5/6 for RS232 (optional)

Parallel port

1 x LPT port (optional)

SIM card

1 x SIM slot

CFast slot

1 x CFast slot

Antenna

3 x antenna hole

I2C

1 x I2C port (optional)

Power Output

1 x 3pin terminal block for DC-out 5V/12V (1A max)







(Rear Side)



Display

1 x DVI-I (DVI-D+VGA)



USB

4 x USB3.0

Serial Port

COM1/3/4 for RS232 , COM 2 for RS232/422/485 (selectable by BIOS) , [COM1/2 for +5V/+12V/RI selectable by jumper]

LAN

2 x GbE LAN, Wake-On-LAN, PXE , LAN 1: Intel® PHY 219 LM (10/100/1000 Mbps) , LAN 2: Intel® LAN 210 AT (10/100/1000 Mbps)

Digital I/O port

8 in / 8 out , DSUB-25 type or 16-pin terminal block(optional)

Audio

1 x Line-in / 1 x Line-out / 1 x MIC

Power Input

DC in 9~36V (DIN type 4-pin connector or 3-pin terminal block)

LED

1 x power LED, 1 x HDD LED, 2 x PoE active LED (optional)



Power On/Off

1 x power button, 1 x remote switch





 >> Environment



Operating Temperature (with airflow)

HDD: 0°C ~45°C (32°F ~ 122° F) (TBD) , SSD: 0°C ~50°C (32°F ~ 113° F) (TBD)

Storage Temperature

- 20°C ~ 80°C (-4°F ~176°F)

Humidity

20% ~ 90%
