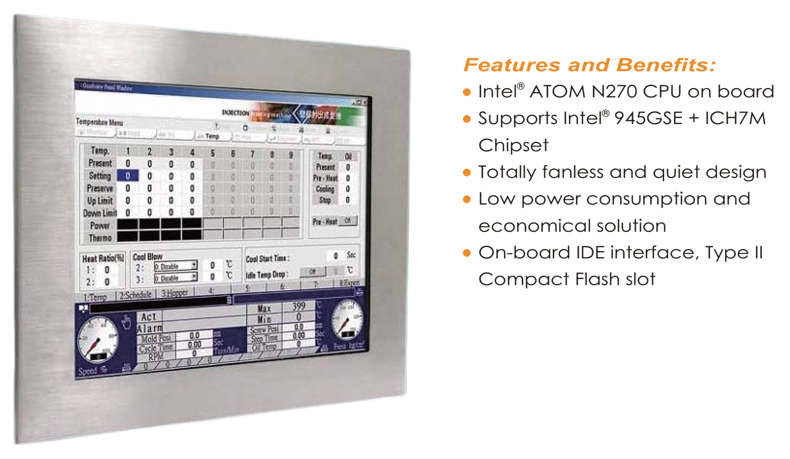

FEATURES
|
>
|
Intel Atom N270
processor up to 1.6GHz
|
|
>
|
Easy switchable front
panel without changing rear computing box
|
|
>
|
Modulized designed for
easy maintenance
|
|
>
|
LCD TFT 1280 x 1024
(SXGA) / 1024 x 768 (XGA)
|
|
>
|
With rugged die-cast
housing design with a NEMA4/IP65 compliant stainless stell front panel
|
|
>
|
Built-in CF card
interface (IDE interface for OS booting)
|

|
|
|
|

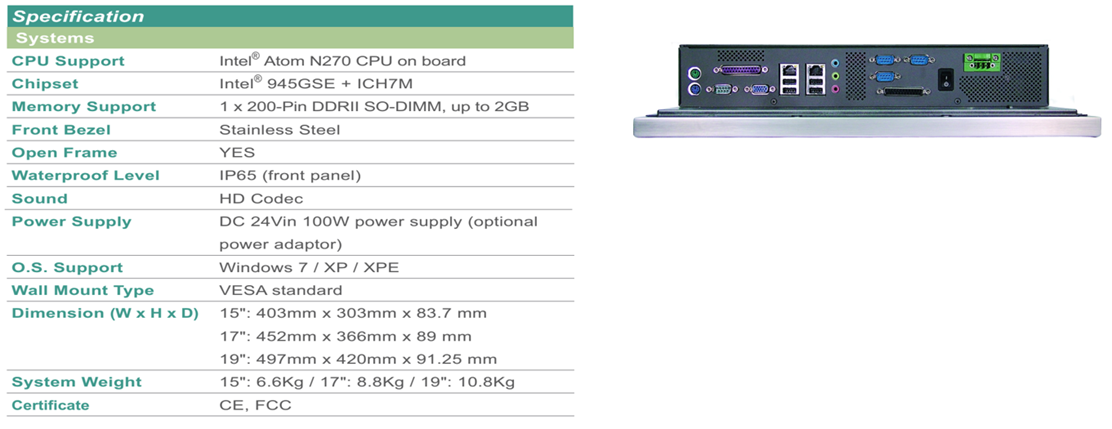

Specifications
|
|
>>
Systems
|
|
|
CPU Support
|
Intel Atom N270 CPU on board
|
|
Chipset
|
Intel 945GSE+ICH7M
|
|
Memory Support
|
1 x 200pin DDR2 SO-DIMM, supports DDR2 400/533 UP TO
2GB
|
|
Max. System Memory
|
2GB
|
|
Front Bezel
|
Aluminum
|
|
Open Frame
|
Yes
|
|
Waterproof Level
|
IP65
|
|
Sound
|
AC'97 Codec
|
|
Power Supply
|
DC 24Vin 110W power support (optional)
|
|
Construction
|
Eelectro Galvanized Steel Chassis
|
|
Wall Mount
Type
|
VESA standard
|
|
Dimension (WxHxD)
|
450 x 380 x 83.8 mm
|
|
System Weight
|
9.23kg
|
|
Certificate
|
CE/ FCC/ UL
|
|
>> I/O Ports
|
|
|
USB
|
4 x USB 2.0
|
|
KB / Mouse
|
2
|
|
Audio
|
1 x Line in / Line out / MIC in
|
|
Serial Port
|
4 x COM ports
|
|
Parallel Port
|
1 x Parallel Port
|
|
Digital I/O
|
8 in/ 8out (share with parallel port)
|
|
LAN
|
2
|
|
VGA
|
1
|
|
Drive Bays
|
1 x slim 2.5"HDD, 1 x slim CD ROM, 1 x CF
Slot on board (IDE Interface)
|
|
Expansion Slot
|
2 x PCI (optional)
|
|
|
>> Display
|
|
|
LCD
|
SXGA
|
|
Touch Screen
|
5W Analog resistive (USB interface)
|
|
Max. Resolution
|
1280 x 1024
|
|
Pixel Pitch
|
0.264 x 0.264
|
|
Brightness
|
300cd/m
|
|
|
>> Environment
|
|
|
Operation Temperature
|
0°~40°C(32°~104°F)
|
|
Storage Temperature
|
-20°~60°C(-4°~140°F)
|
|
Humidity
|
20~90%
|
|
|
|
|
|
|
|
|
|
|
|
