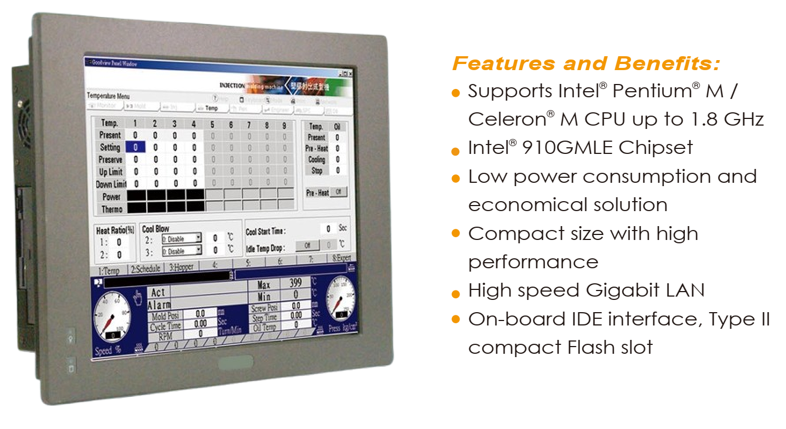

 FEATURES
|
|
>
|
Supports Intel
® Pentium® M / Celeron® M CPU up to 1.8 GHz
|
|
>
|
Intel® 910GMLE
Chipset
|
|
>
|
Low power
consumption and economical solution
|
|
>
|
Compact size
with high performance
|
|
>
|
High speed
Gigabit LAN
|
|
>
|
On-board IDE
interface, Type II compact Flash slot
|
|
>
|
Optional slim
CD-ROM drive
|
|
>
|
High precision
touch screen
|
|
>
|
Supports
Windows XP
|
|
|
|

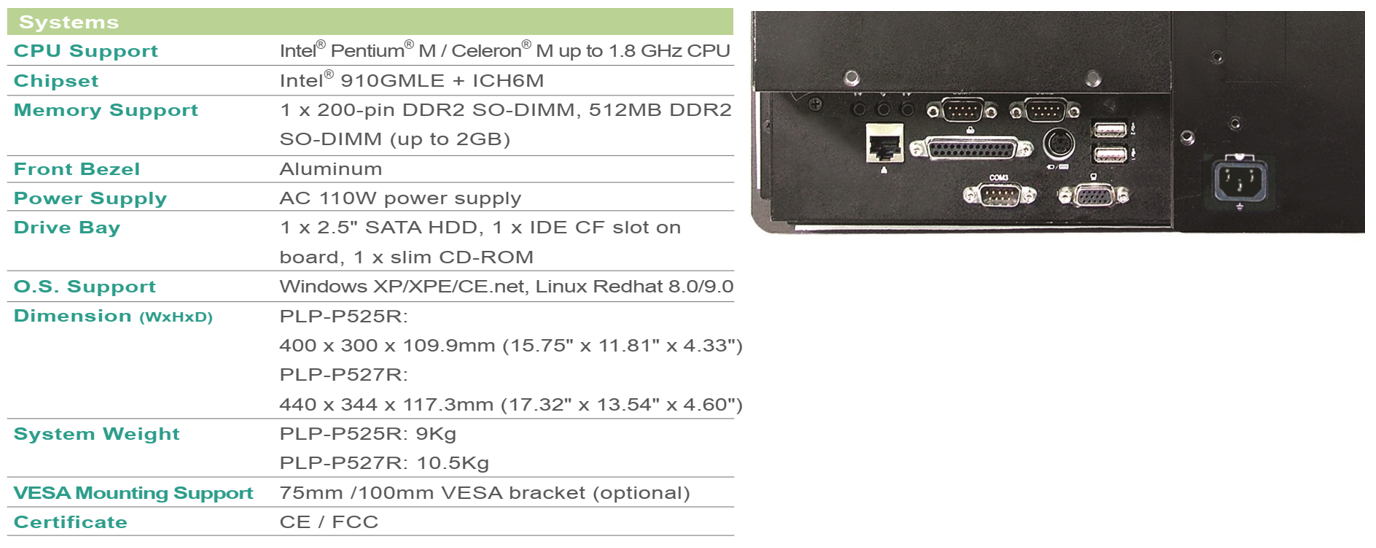

Specifications
|
|
>>
Systems
|
|
|
CPU Support
|
Intel ® Pentium®
M / Celeron® M CPU up to 1.8 GHz
|
|
Chipset
|
Intel ®910GMLE +
ICH6M
|
|
Memory Support
|
1 x 200-pin DDR2
SO-DIMM, 512MB DDR2 SO-DIMM (up to 2GB)
|
|
Front Bezel
|
Aluminum
|
|
Power Supply
|
AC 110W power
supply
|
|
Drive Bay
|
1 x 2.5"
SATA HDD, 1 x IDE CF slot on board, 1 x slim CD-ROM
|
|
O.S. Support
|
Windows
XP/XPE/CE.net, Linux Redhat 8.0/9.0
|
|
Dimension
|
440 x 344 x
117.3mm (17.32" x 13.54" x 4.60")
|
|
Weight
|
10.5Kg
|
|
VESA Mounting
Support
|
75mm /100mm VESA
bracket (optional)
|
|
Certificate
|
CE / FCC
|
|
>>
I/O Ports
|
|
|
USB
|
2 x USB2.0
|
|
KB / Mouse
|
1 x PS/2 port (
KB/MS for Y-cable)
|
|
Audio
|
1 x Line-in, 1
x Line-out, 1 x Mic-in
|
|
Serial Port
|
3 x COM port
(COM 1 & COM 3 for RS-232, COM 2 for RS232/RS422/RS485
selectable, All COM port support +5V/+12V selectable)
|
|
Parallel Port
|
1 x parallel
port (SPP/EPP/ECP, share with Digital I/O )
|
|
Digital I/O
|
4 in / 4 out
(share with parallel port)
|
|
LAN
|
2 x LAN (1 x
10/100, 1 x 10/100/1000)
|
|
VGA
|
1 x DB-15 VGA
Interface
|
|
Brightness
Control
|
VR on rear
panel
|
|
Expansion Slots
|
1 x PCI or 3 x
PCI slot (optionl)
|
|
|
>>
Display
|
|
|
LCD
|
17" TFT
LCD
|
|
Max. Resolution
|
1280 x 1024
|
|
Brightness
|
300 cd/m
|
|
Touch Screen
|
7W Analog
resistive (USB interface)
|
|
|
>>
Environment
|
|
|
Operation
Temperature
|
0°~40°C(32°~104°F)
|
|
Storage
Temperature
|
-20°~60°C(-4°~140°F)
|
|
Humidity
|
20~90%
|
|
|
|
|
|
