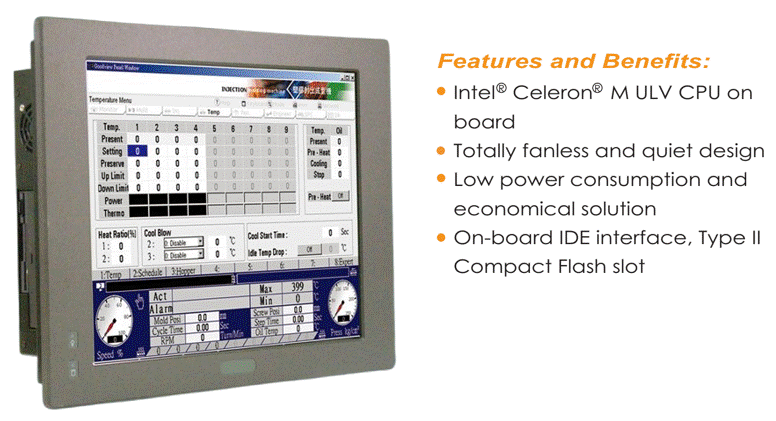

 FEATURES
|
|
>
|
Intel Celeron M
ULV CPU on board
|
|
>
|
Totally fanless
and quiet design
|
|
>
|
Low power
consumption and economical solution
|
|
>
|
On-board IDE
interface, Type II Compact Flash slot
|
|
>
|
Optional slim
CD-ROM drive
|
|
>
|
Supports
Windows XP
|
|
>
|
24V DC power
support, optional power adapter for AC power
|
|
|
|

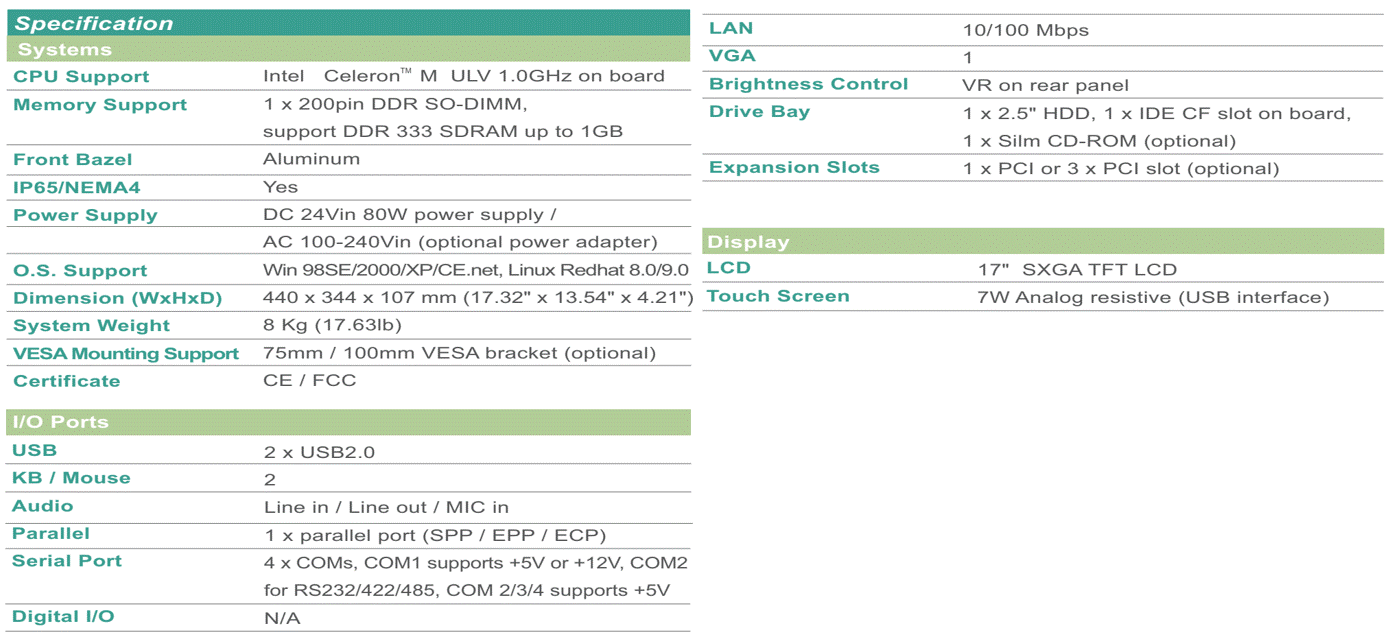

Specifications
|
|
>>
Systems
|
|
|
CPU Type
|
Intel Celeron M
ULV 1.0GHz on board
|
|
Memory Support
|
1 x 200pin DDR
SO-DIMM, support DDR 266 SDRAM up to 1GB
|
|
Front Bezel
|
Aluminum
|
|
IP65 / NEMA4
|
Yes
|
|
Power Supply
|
DC 24Vin 80W
power supply / AC 100-240Vin (optional power adapter)
|
|
O.S. Support
|
Win 98SE / 2000 /
XP / CE.net, Linux Redhat 8.0/9.0
|
|
Dimension (W x H
x D)
|
440 x 344 x 117
mm (17.32" x 13.54" x 4.60")
|
|
System Weight
|
10.5 Kg (17.63lb)
|
|
VESA Mounting
Support
|
75mm / 100mm VESA
bracket (optional)
|
|
Certificate
|
CE / FCC
|
|
>>

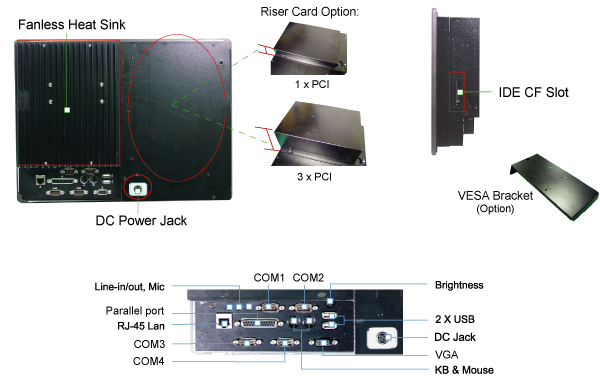

I/O Ports
|
|
|
USB
|
2 x USB2.0
|
|
KB / Mouse
|
2
|
|
Audio
|
Line in / Line
out / MIC in
|
|
Parallel
|
1 x parallel
port (SPP / EPP / ECP)
|
|
Serial Port
|
4 x COMs, COM1
supports +5V or +12V, COM2 for RS232/422/485, COM 2/3/4 supports +5V
only
|
|
Digital I/O
|
N/A
|
|
LAN
|
10/100 Mbps
|
|
VGA
|
1
|
|
Brightness
Control
|
VR on rear
panel
|
|
Drive Bay
|
1 x 2.5"
HDD, 1 x IDE CF slot on board, 1 x Silm CD-ROM (optional)
|
|
Expansion Slots
|
1 x PCI or 3 x
PCI slot (optional)
|
|
|
>>
Display
|
|
|
LCD
|
17" SXGA
TFT LCD
|
|
Touch Screen
|
7W Analog
resistive (USB interface)
|
|
|
>>
Environment
|
|
|
Operation
Temperature
|
0°~40°C(32°~104°F)
|
|
Storage
Temperature
|
-20°~60°C(-4°~140°F)
|
|
Humidity
|
20~90%
|
|
|
|
|
