FEATURES
|
| > |
Supports
Intel Pentium M / Celeron M CPU up to 1.8 GHz |
| > |
Intel
855GME Chipset |
| > |
Low power
consumption and economical solution |
| > |
Compact
size with high performance
|
| > |
High speed
Gigabit LAN |
| > |
On-board
IDE interface, Type II CompactFlash slot |
| > |
High
precision touchscreen |
| > |
Optional
PCI Expansion slot (1 or 3 slots)
|
|
|
|
Specifications |
|
>> Systems |
|
| CPU Type |
Intel Pentium M / Celeron M up to
1.8GHz |
| Memory Support |
1 x 200pin DDR SO-DIMM, support DDR
266 SDRAM up to 1GB |
| Front Bezel |
Aluminum |
| IP65 / NEMA4 |
Yes |
| Power Supply |
AC 110W power supply |
| O.S. Support |
Win 98SE / 2000 / XP / CE.net, Linux
Redhat 8.0/9.0 |
| Dimension (W x H x D) |
400 x 300 x 102 mm (15.6" x 11.7" x
4.01") |
| System Weight |
9 Kg (20.9lb) |
| VESA Mounting Support |
75mm / 100mm VESA bracket (optional) |
| Certificate |
CE / FCC |
|

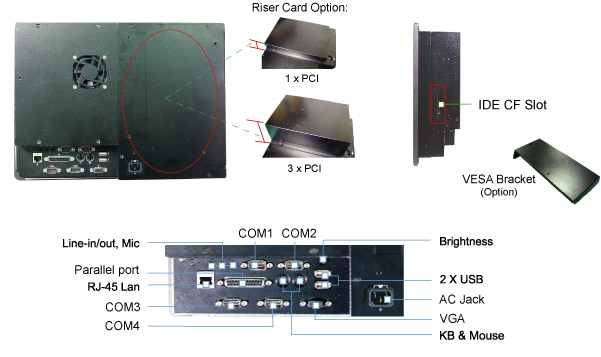

>> I/O Ports |
|
| USB |
2 x USB2.0 |
| KB / Mouse |
2 |
| Audio |
Line in / Line out / MIC in |
| Parallel |
1 x parallel port (SPP / EPP
/ ECP) |
| Serial Port |
4 x COMs, COM1 supports +5V
or +12V, COM2 for RS232/422/485, COM 2/3/4
supports +5V only |
| Digital I/O |
N/A |
| LAN |
10/100/1000 Mbps |
| VGA |
1 |
| Brightness Control |
VR on rear panel |
| Drive Bay |
1 x 2.5" HDD, 1 x IDE CF
slot on board, 1 x Silm CD-ROM (optional) |
| Expansion Slots |
1 x PCI or 3 x PCI slot
(optional) |
|
|
>> Display |
|
| LCD |
15" XGA TFT LCD |
| Touch Screen |
7W Analog resistive (USB
interface) |
|
|
>> Environment |
|
| Operation
Temperature |
0°~40°C(32°~104°F) |
| Storage Temperature |
-20°~60°C(-4°~140°F) |
| Humidity |
20~90%
|
|
|
|
|
