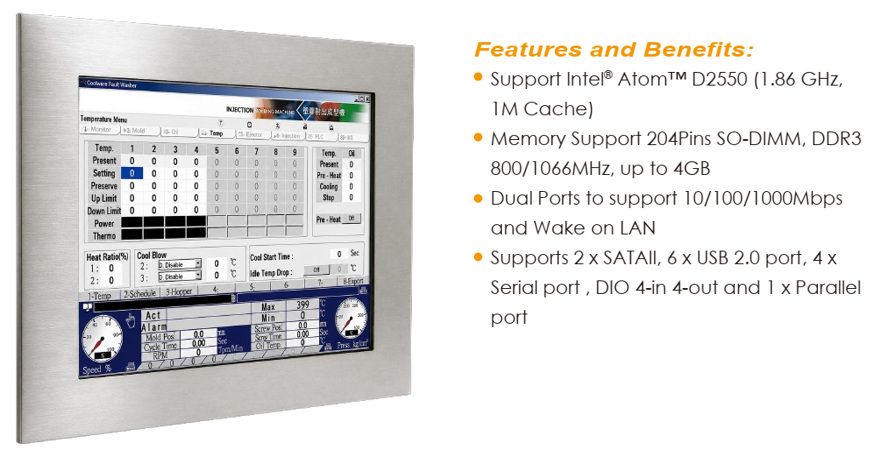

Support Intel® Atom™ D2550 (1.86 GHz, 1M Cache)
|
|
>
|
Memory Support 204Pins SO-DIMM, DDR3 800/1066MHz,
up to 4GB
|
|
>
|
Dual Ports to support 10/100/1000Mbps and Wake on
LAN
|
|
>
|
Supports 2 x SATAII, 6 x USB 2.0 port, 4 x Serial
port , DIO 4-in 4-out and 1 x Parallel port
|
|
>
|
Support dual PCI expansion Slot (PCIe to PCI
riser card )
|
|
>
|
Fanless Panel PC
|
|
>
|
Easy maintenance (modular design)
|
|
>
|
Optional slim DVD drive
|
|
>
|
Stainless steel front bezel
|
|
|
|

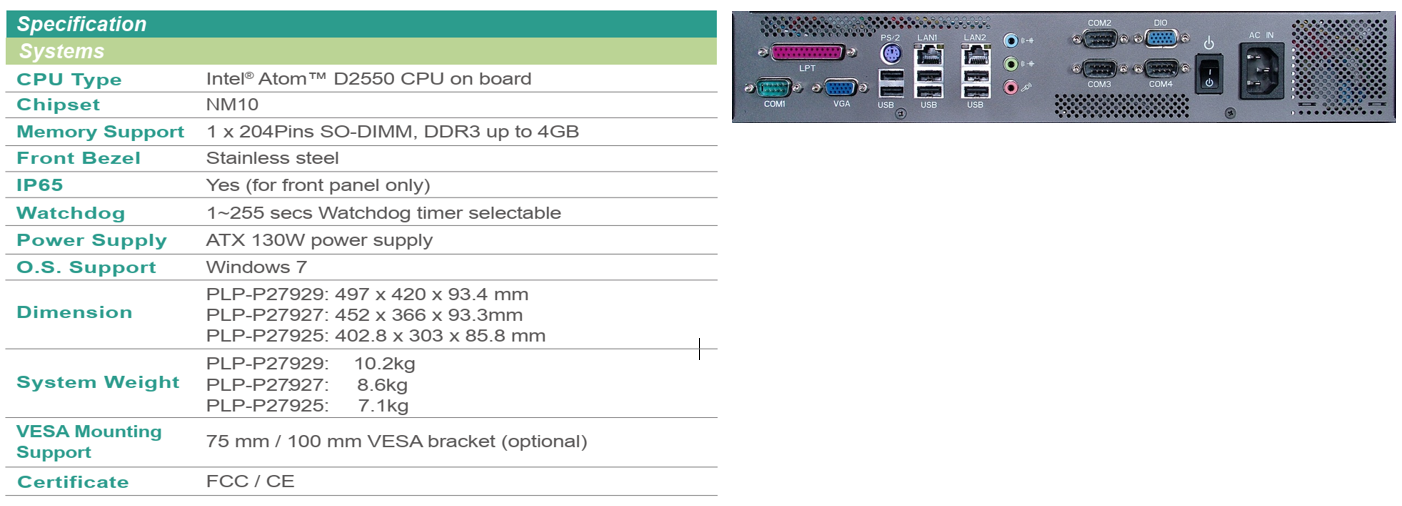

Specifications
|
|
>> Systems
|
|
|
CPU Type
|
Intel® Atom™ D2550 CPU on
board
|
|
Chipset
|
NM10
|
|
Memory Support
|
1 x 204Pins SO-DIMM, DDR3
up to 4GB
|
|
Front Bezel
|
Stainless steel
|
|
IP65
|
Yes (for front panel only)
|
|
Watchdog
|
1~255 secs Watchdog timer
selectable
|
|
Power Supply
|
ATX 130W power supply
|
|
O.S. Support
|
Windows 7
|
|
Dimension
|
497 x 420 x 93.4 mm
|
|
System Weight
|
TBD
|
|
VESA Mounting Support
|
75 mm / 100 mm VESA
bracket (optional)
|
|
Certificate
|
FCC / CE
|
|
>> I/O Ports
|
|
|
USB
|
6 x USB 2.0
|
|
Keyboard / Mouse
|
1 x PS/2 port
|
|
Audio
|
Line-in / Line-out / Mic
in
|
|
Parallel Port
|
1 x Parallel port (SPP /
EPP / ECP)
|
|
Serial Port
|
4 x COM port (all COM
ports support +5V or +12V), COM 2 for RS232/422/485 selectable
|
|
Digital I/O
|
4-in /4-out(with 5V
&12V)
|
|
LAN
|
2 x LAN (10/100/1000
Mbps)
|
|
VGA
|
1 x VGA
|
|
Drive Bay
|
2 x 2.5" HDD or 1 x
2.5" HDD +1 x slim SATA DVD (optional)
|
|
Expansion Slots
|
2 x PCI slot (optional)
|
|
|
>> Display
|
|
|
LCD
|
AUO 19" SXGA TFT
LCD (refer selection guide for detail)
|
|
Touch Screen
|
(ELO) 5W Analog resistive
(USB interface)
|
|
|
>> Environment
|
|
|
Operation Temp.
|
0° ~ 40° C ( 32° ~ 104°
F )
|
|
Storage Temp.
|
- 20° ~ 60 ° C ( - 4° ~
140° F )
|
|
Humidity
|
20% ~ 90%
|
|
|
|
|
|
|
|
|
