FEATURES |
| > |
12.1"
High-Performance Low-power POS Terminal |
| > |
Intel
Celeron M ULV (ultra-low-voltage) platform |
| > |

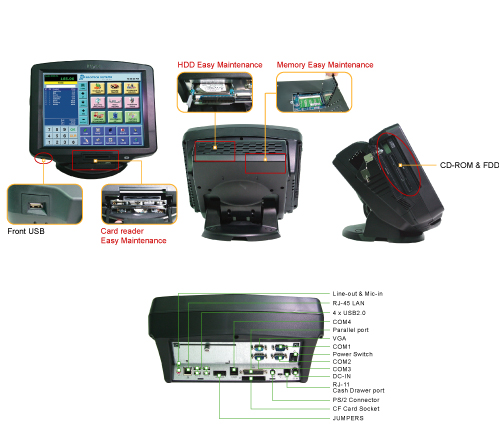

Easy-Maintain Design -- swappable 2.5"HDD,
easy-access Memory & CF Card, exchangeable MSR
|
| > |
Optional
MSR and Smart (IC) Card Reader
|
| > |
Optional
Slim CD-ROM & Slim Floppy
|
| > |
Silent
operation (<35dB)
|
|
|
|
Specifications |
|
>> Systems |
|
| CPU |
Intel Celeron M ULV 1GHz (uBGA) |
| Memory |
One 200-pin DDR SODIMM socket
supports up to 1GB (Non-ECC) |
| Core Logic |
Intel 852GM & ICH4 Support FSB
400MHz CPU, DDR 200/266 |
| Network |
10/100 Base-T Fast Ethernet |
| Audio |
AC '97 Codec |
| Power Supply |
120W power adaptor, AC 100-240V
input |
| System Weight |
6.07kg |
| Dimension (W x H x D) |
315 x 293 x 270 mm (12.4" x 11.54" x
10.63") |
| O.S. Support |
Microsoft Windows 2000 / XP / XPE,
Linux, WEPOS |
| Certificate |
CE/FCC |
|
>> I/O Ports |
|
| HDD |
2.5" IDE interface HDD x 1
(standard 40GB) |
| FDD |
Slim-type FDD x 1 (optional) |
| CD-ROM |
Slim-type CD-ROM x 1
(optional) |
| CF |
Bootable Compact Flash slot
for CF type I/II storages x 1 |
| USB |
5 x USB2.0 (1 x front, 4 x
rear) |
| Serial Ports |
All COM ports are 5V/12V
selectable, 3 x DB-9 (COM1~COM3, COM1 share
with smart card reader), 1 x RJ-45 (COM4) |
| Parallel |
1 x DB-25 parallel port (SPP
/ EPP / ECP) |
| PS/2 |
1 x PS/2 ports |
| LAN |
1 x RJ-45 interface |
| Audio |
1 x Line-out, 1 x Mic-in |
| VGA |
1 x DB-15 VGA interface |
| Cash Drawer |
1 x RJ-11 port for cash
drawer (12V & 24V selectable) |
|
|
>> Display |
|
| LCD |
12.1" TFT LCD |
| Max. Resolution |
800 x 600 (Optional 1024 x
768) |
| Brightness |
250 cd/m2 |
|
|
>> Environment |
|
| Operation
Temperature |
0°~35°C(32°~95°F) |
| Storage Temperature |
-20°~60°C(-4°~140°F) |
| Humidity |
20~90% |
|
|
|
|
