 FEATURES
|
|
>
|
Easy to transfer to panel PC
after removing stand
|
|
>
|
Pentium® M / Celeron® M high
performance platform LCD display with touch screen
|
|
>
|
Flexible design for versatile
applications
|
|
>
|
Optional Fingerprint module or
i-Button for user identification & security control
|
|
>
|
Small Footprint
|
|
|
|
Specifications
|
|
>> Systems
|
|
|
CPU Support
|
Intel® Celeron® M 1.5GHz CPU (up
to Pentium® M 1.8GHz)
|
|
Memory
|
1 x DDR2 SO-DIMM Slot, 512MB
DDR2 SO-DIMM (up to 1GB)
|
|
Core Logic
|
Intel® 910GMLE & ICH6M
|
|
Network
|
10/100Base-T Fast Ethernet
|
|
Power Supply
|
120W Power adapter
|
|
System Weight
|
9 kg
|
|
Dimension (W x H x D)
|
365 x 363 x 297 mm (14.37"
x 14.29" x 11.69")
|
|
O.S. Support
|
Windows XP / XPE, Linux, WEPOS
|
|
HDD
|
1 x 2.5" SATA HDD (standard
80GB)
|
|
CF
|
1 x bootable Compact Flash slot
for CF type I/II storage (optional)
|
|
EMC & Safety
|
CE, FCC, cUL, CCC
|
|

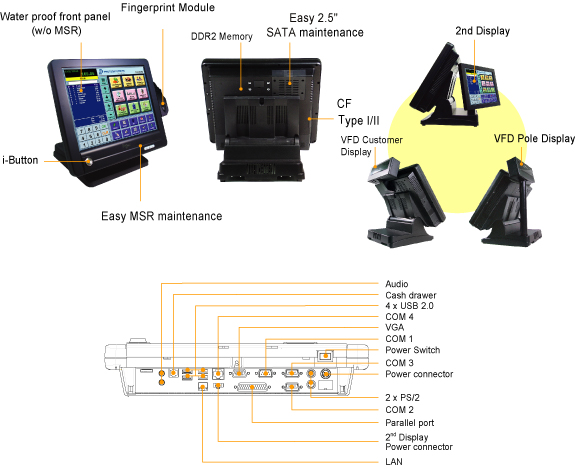

>> I/O
Ports
|
|
|
Option
|
i-Button / Fingerprint Module/
Vertical or Horizontal MSR
|
|
USB
|
4 x USB 2.0 port
|
|
Serial Port
|
3 x DB-9 (COM 1/2/3), 1 x RJ45
(COM 4), +5/12V Selectable
|
|
Parallel Port
|
1 x Parallel port (SPP / EPP
/ECP)
|
|
Keyboard & Mouse
|
2 x PS/2 port
|
|
LAN
|
1 x 10 / 100 Mbps
|
|
VGA
|
1 x DB-15 VGA Interface
|
|
Cash Drawer
|
1 x RJ11 port for 12V/24V Cash
drawer
|
|
Audio
|
|
|
|
>>
Display
|
|
|
LCD
|
15" TFT LCD
|
|
Max. Resolution
|
1024 x 768
|
|
Brightness
|
250 cd/m˛
|
|
Touch Screen
|
5-wire Analog resistive
|
|
Viewing Angle
|
0 ~ 65 degree
|
|
|
>> Environment
|
|
|
Operation Temperature
|
0°~35°C(32°~95°F)
|
|
Storage Temperature
|
-20°~60°C(-4°~140°F)
|
|
Humidity
|
20~90%
|
|
|
|
|
