POS-P656 Intel Pentium M High Performance 15" POS Terminal


  FEATURES
> Pentium M / Celeron M high performance platform
> 15" LCD display with touch screen
> Flexible design for versatile applications
> Silent POS terminal (<35db)
> Optional i-Button for user identification & security control
> Optional 802.11 b/g WLAN communication capability
> Small Footprint
   Specifications
>> Systems
Power Supply 180W ATX power supply,AC 100-240V input
System Weight 9kg
Dimension (W x H x D) 365 x 363 x 297 mm (14.37" x 14.29 " x 11.69 ")
O.S. Support Windows / 2000 / XP / XPE, Linux, WEPOS
CPU Intel Celeron M 1.5GHz CPU (up to Pentium M 1.8GHz)
Memory 1 x DDR SO-DIMM Slot, 256MB DDR SDRAM (up to 1GB)
Core Logic Intel 855GME & ICH4 support FSB 400MHz CPU, DDR 266/333
Expansion 32-bit Mini-PCI slot x 1
Network 10/100Base-T Fast Ethernet (optional 802.11 b/g WLAN Mini-PCI module)
Audio AC '97 Codec with internal mono speaker (2watt x 1)
Protection Water Proof Front Panel (w/o MSR)
Certificate CE/FCC

>> I/O Ports
HDD 1 x 2.5" HDD (standard 40GB)
CF Optional bootable Compact Flash slot for CF type I/II storages
USB 3 x USB 2.0 ports
Serial Ports 2 x DB-9 (COM 1 & 2), 2 x RJ45 (COM 3 & 4), +5V/12V Selectable
Parallel 1 x DB-25 parallel port (SPP / EPP / ECP)
PS/2 2 x PS/2 ports
LAN 1 x RJ-45 interface
Audio 1 x Line-out audio jack
VGA 1 x DB-15 VGA interface
Cash Drawer 1 x RJ11 port for 12V Cash Drawer

>> Display
LCD 15" TFT LCD
Max. Resolution 1024 x 768
Brightness 250 cd/m2
Touch Screen 5-wire Analog resistive
Viewing Angle 0 ~ 65 degree
Display Tilt Angle 2 ~ 70 degree

>> Environment
Operation Temperature 0~35C(32~95F)
Storage Temperature -20~60C(-4~140F)
Humidity 20~90%

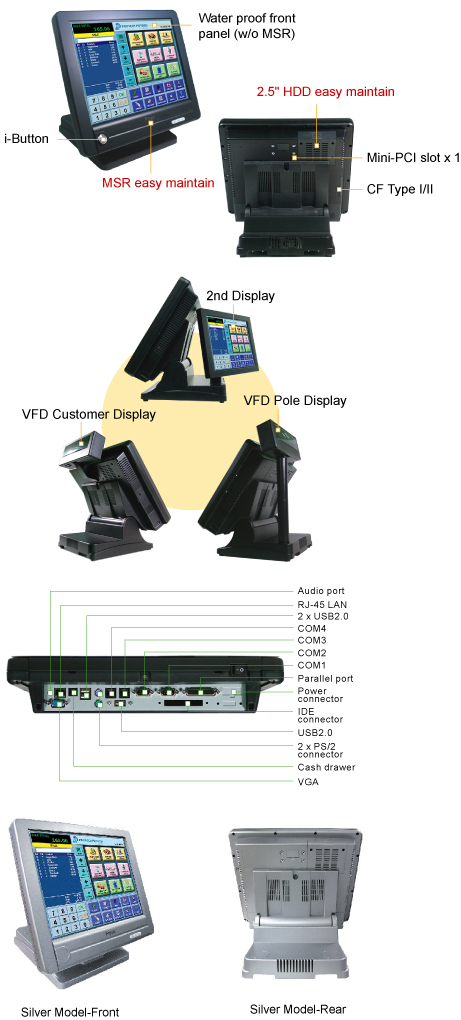

   Highlights
