PLP-P6307/D5

Fanless and Low Power 17" Intel® D2550 processor Panel PC

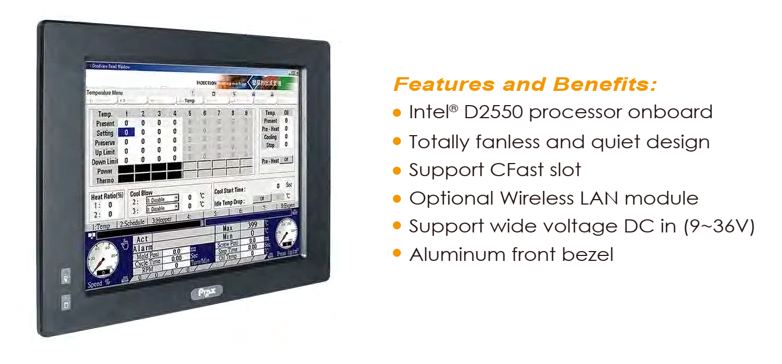

     Features



>

Intel® D2550 processor on board

>

Totally fanless and quiet design

>

Support CFast slot

>

Optional Wireless LAN module

>

Support wide voltage DC in (9~36V)

>

Aluminum front bezel

>

Intel® D2550 processor on board

>

Totally fanless and quiet design

>

Support CFast slot

>

Optional Wireless LAN module



                                                                                                Touch driver download

Specifications

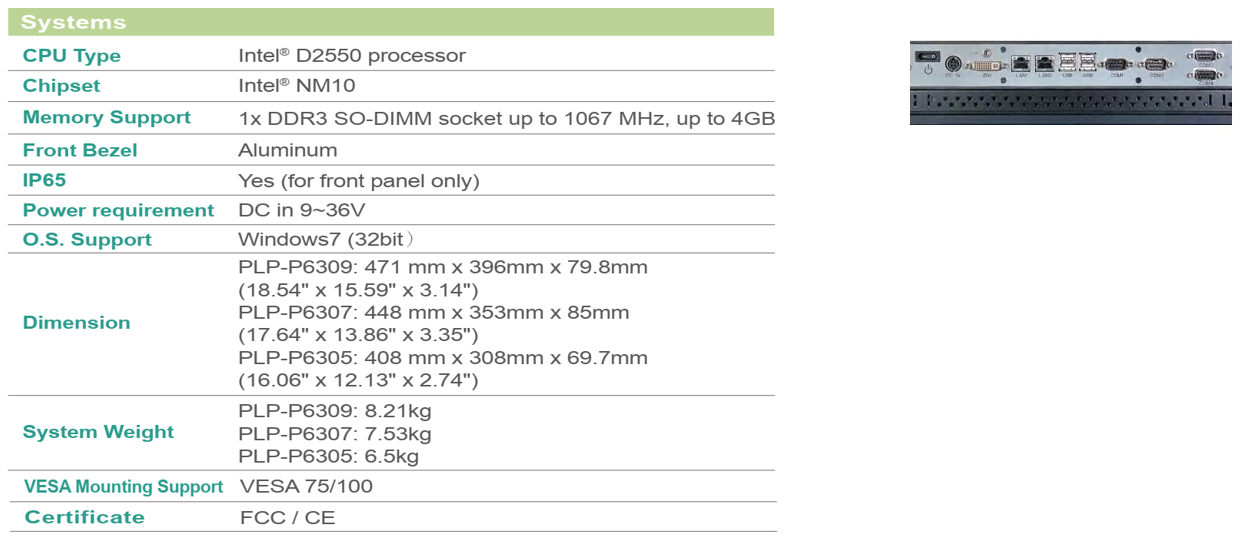

>> Systems



CPU Type

Intel® D2550 processor

Chipset

Intel® NM10

Memory Support

1x DDR3 SO-DIMM socket up to 1067 MHz, up to 4GB

Front Bezel

Aluminum

IP65

Yes (for front panel only)

Power requirement

DC in 9~36V

Operating System

Win7 (32-bit)

Dimension

448 mm x 353mm x 85mm (17.64" x 13.86" x 3.35")

System Weight

7.53kg

VESA Mounting Support

VESA 75/100

Certificate

FCC / CE

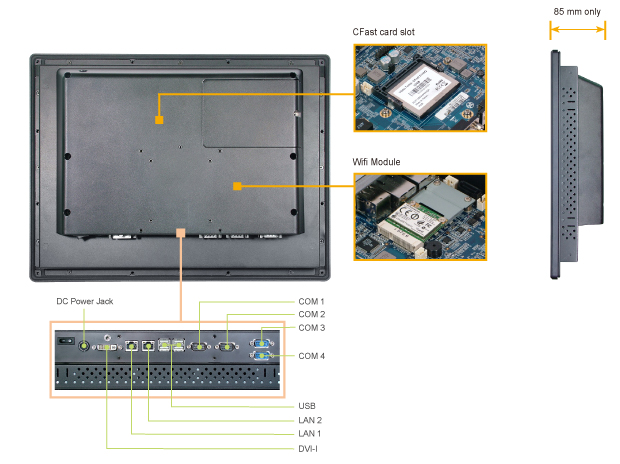

>> I/O Ports



USB

4 x USB 2.0

Audio

1 x Line-out

Serial

4x COM port, (COM 1/2/3 with RI/5V/12V)
COM 1/4 for RS232
COM 2/3 for RS232/422/485

LAN

2 x LAN (10/100/1000 Mbps)

DVI

1 x DVI-I

Drive Bay

1 x 2.5" SATA HDD

Expansion Slots

1 x CFast slot, 1 x mini PCIe slot



>> Display



LCD

17" 1280 x 1024 SXGA 350nit LED backlight LCD

Touch Screen

ELO 5-wire resistive type (USB interface)



>> Environment



Operation Temp.

0~45° C (w/HDD)
0~55° C (w/CFast card)

Storage Temp.

-20° ~ 60°C (-4° ~ 140° F)

Humidity

20% ~ 90%
