PLP-P617R

High Performance 17" Panel PC

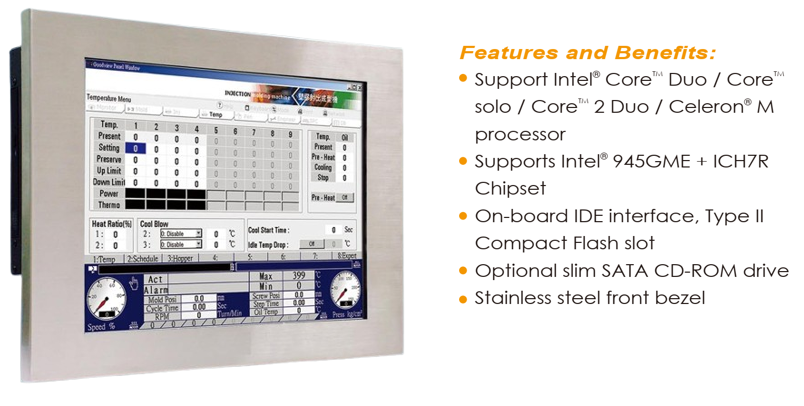

 FEATURES

>

Support Intel Core Duo / Core solo / Core 2 Duo / Celeron M processor

>

Support Intel 945GME + ICH7R Chipset

>

On-board IDE interface, Type II Compact Flash slot

>

Optional slim SATA CD-ROM drive

>

Stainless steel front beze

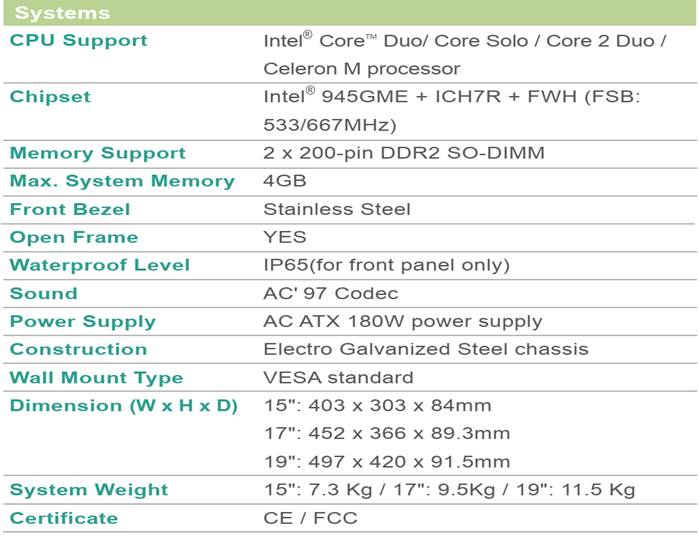

  Specifications

>> Systems



CPU Support

Intel Core Duo / Core solo / Core 2 Duo / Celeron M processor

Chipset

Intel 945GSE+ICH7R +FWH (FSB:533/667MHz)

Memory Support

2 x 200pin DDR2 SO-DIMM

Max. System Memory

4GB

Front Bezel

Stainless Steel

Open Frame

Yes

Waterproof Level

IP65

Sound

AC'97 Codec

Power Supply

AC ATX 180W power supply

Wall Mount Type

VESA standard

Dimension (WxHxD)

452 x 366 x 89.3 mm

System Weight

9.5kg

Certificate

CE/ FCC



>> I/O Ports



USB

4 x USB 2.0

KB / Mouse

2 x PS/2 Port

Audio

1 x Line in / Line out / MIC in

Serial Port

4 x COM port (COM 1/3/4 for RS232, COM2 for RS232/422/485, COM3/4 support +5V, +12V Selectable)

LAN

1 x LAN(10/100/1000 Mbps)

VGA

1 x VGA

Drive Bays

2 x 2.5" SATA HDD, 1 x slim CD ROM, 1 x IDE CF Slot on board

Expansion Slots

2 x PCI slot (optional)



>> Display



LCD

SXGA

Touch Screen

5W Analog resistive (USB interface)

Max. Resolution

1280 x 1024

Pixel Pitch

0.264 x 0.264

Brightness

300cd/m



>> Environment



Operation Temperature

0~40C(32~104F)

Storage Temperature

-20~60C(-4~140F)

Humidity

20~90%



   Highlights
