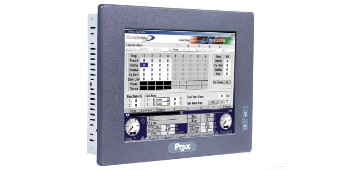

PLP-P508FR Fanless and Low Power 8.4" Panel PC

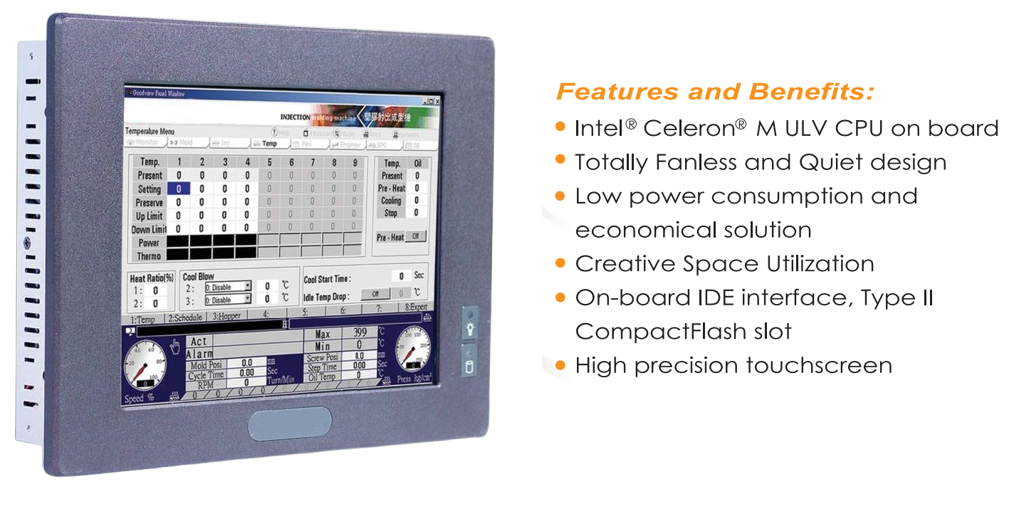

   FEATURES
> Intel Celeron M ULV CPU on board
> Intel 852GM Chipset
> Totally fanless and quiet design
> Low power consumption and economical solution
> High precision touchscreen
> 24V DC power support
> On-board IDE interface, Type II Compact Flash slot

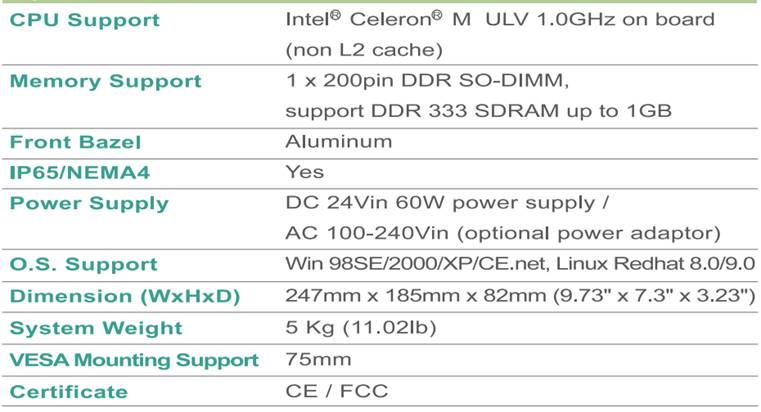

   Specifications
>> Systems
CPU Type Intel Celeron M ULV 1.0GHz on board
Memory Support 1 x 200pin DDR SO-DIMM, support DDR 266 SDRAM up to 1GB
Front Bezel Aluminum
Open Frame Yes (optional)
IP65 / NEMA4 Yes
Power Supply DC 24Vin 60W power supply / AC 100-240Vin (optional power adaptor)
O.S. Support Win 98SE / 2000 / XP / CE.net, Linux Redhat 8.0/9.0
Dimension (W x H x D) 247mm x 185mm x 82mm (9.73" x 7.3" x 3.23")
System Weight 5 Kg (11.02lb)
VESA Mounting Support 75mm

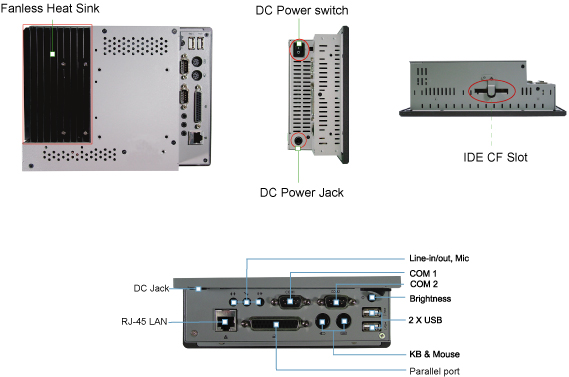

>> I/O Ports
USB 2 x USB 2.0
KB / Mouse 2
Audio Line in / Line out / MIC in
Parallel 1 x parallel port (SPP / EPP / ECP)
Serial Port 2 x COMs, COM1 supports +5V or +12V, COM2 for RS232/422/485, supports +5V only
Digital I/O N/A
LAN 10/100 Mbps
VGA N/A
Brightness Control VR on rear panel
Drive Bay 1 x 2.5" HDD, 1 x IDE CF slot on board
Expansion Slots N/A

>> Display
LCD 8.4" SVGA TFT LCD
Touch Screen 5W Analog resistive (USB interface)

>> Environment
Operation Temperature 0~40C(32~104F)
Storage Temperature -20~60C(-4~140F)
Humidity 20~90%
