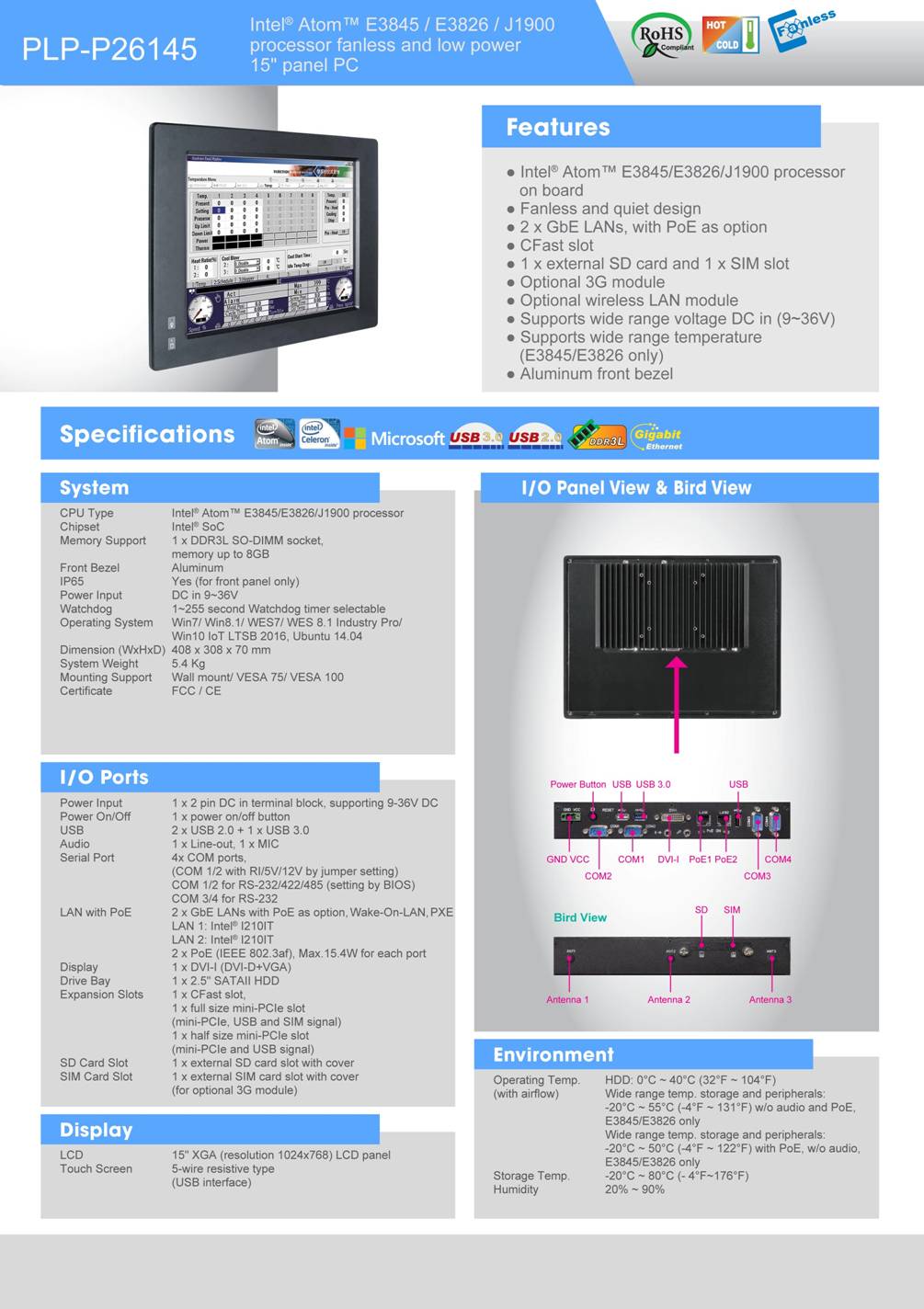

15" IntelŽ E3845/E3826/J1900 processor Fanless and Low Power Panel PC






> IntelŽ E3845/E3826/J1900 processor on board

> Fanless and quiet design

> 2 GbE LAN, with PoE as option

> CFast slot

> 1 x external SD card and 1 x SIM slot

> Optional 3G module

> Optional Wireless LAN module

> Support wide voltage DC in (9~36V)

> Support wide temperature (E3845/E3826 only)

> Aluminum front bezel





>> Systems


CPU Type

IntelŽ E3845/E3826/J1900 processor


IntelŽ SoC

Memory Support

1 x DDR3L SO-DIMM socket, memory up to 8GB

Front Bezel



Yes (for front panel only)

Power Input

DC in 9~36V


1~255second Watchdog timer selectable

Operating System

Win7/ Win8.1/ WES7/ WE 8.1 Industrial Pro

Dimension(W x H x D)

408 x 308 x 87.7 mm

Mounting Support

Wall mount/ VESA 75/ VESA 100




>> I/O Ports


Power input

1 x 2 pin DC in terminal block, supporting 9-36V DC

Power ON/OFF

1 x Power ON/OFF button


2 x USB 2.0 + 1 x USB 3.0


1 x Line-out, 1 x MIC-in

Serial Port

4x COM port, (COM 1/2 with RI/5V/12V by jumper setting)
COM 1/2 for RS232/422/485 (setting by BIOS)
COM 3/4 for RS232

LAN with PoE

2 x GbE LAN with PoE as option, Wake-On-Lan, PXE
LAN 1: IntelŽ I210IT
LAN 2: IntelŽ I210IT
2 x PoE (IEEE 802.3af), Max.15.4W each port


1 x DVI-I


>> Display



15" XGA(resolution 1024x768) LCD Panel

Touch Screen

5-wire resistive type (USB interface)


>> Environment


Operation  Temperature (with Airflow)

HDD: 0°C ~ 40° C (32°F ~ 104° F)
Wide temp. storage and peripherals: -20°C ~ 55° C (-4°F ~ 131° F) w/o Audio and PoE, E3845/E3826 only)
Wide temp. storage and peripherals: -20°C ~ 50° C (-4°F ~ 122° F) with PoE, w/o Audio, E3845/E3826 only)

Storage Temperature

- 30°C ~ 60°C (- 22°F~140°F)


20% ~ 90%
