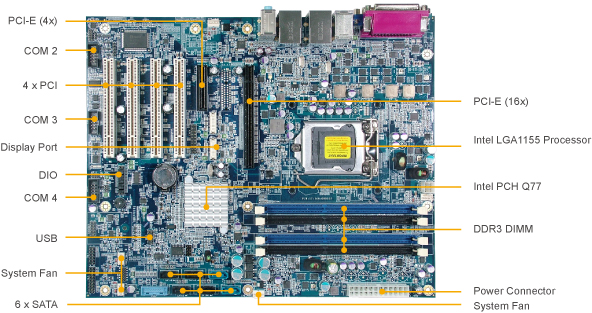

IPC-MP891
|
ATX MB with Intel® 3rd Gen. Core™ i7/i5/i3 and Pentium® CPU
|
|
|
|
|
|
Features
|
>
|
LGA
1155 Intel® Core™ i7/i5/i3 Pentium® CPU
|
|
>
|
Support
USB 3.0
|
|
>
|
Equipped
with Intel® Q77 chipset
|
|
>
|
Memory
supports DDR3 DIMM 1066/ 1333 up to 32GB
|
|
>
|
Support
Dual Gigabit Ethernet
|
|
>
|
Supports
SATA RAID 0, 1, 5, 10
|
|
>
|
Expansion
Slots for one PCI-E(16x), one PCI-E(4x), four PCI slot
|
|
Specifications
|
>> Systems
|
|
|
CPU
Support
|
Intel®
3rd Gen. Core™ i7/i5/i3 and Pentium® Processor
|
|
|
CPU
Frequency
|
3.3~3.4GHz
|
|
|
Chipset
|
Intel®
PCH Q77
|
|
|
DRAM
|
4
x 240-pin DDR3 DIMM, support dual -channel 1333/1066Hz SDRAM Non-ECC
Unbuffered DIMM (system max. 32GB)
|
|
|
BIOS
|
AMI
BIOS
|
|
|
Watchdog
|
1~255
secs Watchdog timer selectable
|
|
|
Power
Supply
|
Support
ATX Power
|
|
|
Power
Requirement
|
+5V,
+12V, -12V,+3.3V, +5VSB
|
|
|
Dimension
|
305
mm x 244 mm (12" x 9.6")
|
|
|
Certificate
|
FCC
/ CE
|
|
|
>> I/O Ports
|
|
|
SATA
Interface
|
2
x SATA III (6.0Gb/s), 4 x SATA II (3.0Gb/s), (Raid 0,1,10,5)
|
|
Expansion
Bus
|
1
x PCI-E(16x) , 1 x PCI-E(4x) , 4 x PCI slot
|
|
TPM
|
TPM1.2
with 20-pin header on board for TPM (Trusted Platform Module)
|
|
Serial Port
|
4
x COM port, COM 1/3/4 for RS-232, COM 2 for RS-232/422/485
|
|
Parallel Port
|
1
x parallel port (SPP/EPP/ECP)
|
|
IrDA
|
1
(SIR)
|
|
Keyboard
|
PS/2
Connector, with mini DIN connector
|
|
Mouse
|
PS/2
Connector, with mini DIN connector
|
|
LAN
|
LAN
1: Intel® 82579LM (10/100/1000 Mbps)
LAN 2: Intel® 82583V (10/100/1000 Mbps)
Support Wake-on-LAN with ATX power
|
|
Audio
|
High
Definition Audio; Realtek ALC888S with Mic / Line-In / Line-Out
|
|
DI/O
|
8
in / 8 out
|
|
USB
|
10
x USB 2.0, 2 x USB 3.0
|
|
|
>> Display
|
|
|
Graphics
|
Build-in
processor, share system memory
Supports VGA, 2 x Display port
|
|
|
*Discrete
graphic card is necessary for display if the chosen CPU doesn’t
have integrated graphics support.
|
|
|
>> Environment
|
|
|
Operation
Temp.
|
0°
~ 60° C (32° ~ 140° F)
|
|
Storage
Temp.
|
-
40° ~ 85° C ( - 40° ~ 185° F)
|
|
Humidity
|
Operation
humidity 5 ~ 90% (non-condensing)
|
|
|
|
|
|
|
|
|
|
|
