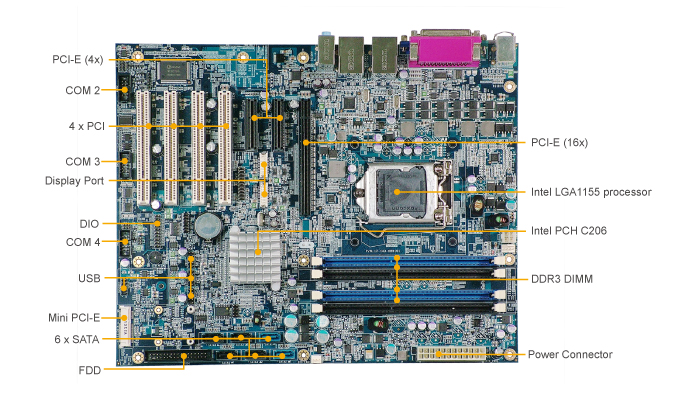

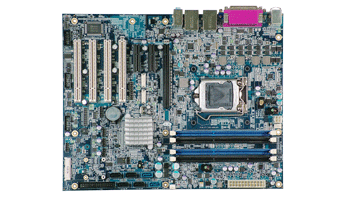

FEATURES
|
| > |
Intel® LGA1155 socket
support Sandy Bridge Core™ i3/Xeon® E3 processor |
| > |
Four DIMM socket support up
to 32 GB DDR3 1066/1333 (support ECC, non-ECC)
|
| > |
Support dual Gb Ethernet
|
|
> |
Supports SATA RAID 0, 1, 5,
10, iAMT7.0 |
|
> |
Expansion slots for one
PCI-E(16x), two PCI-E(4x), four PCI slot and one Mini
PCIe |
|
|
|
Specifications |
|
>> Systems |
|
| CPU Support |
Intel® Sandy Bridge Core™
i3/Xeon® E3 processor
(supports Intel® 32 nm Sandy Bridge CPU) |
| CPU Frequency |
3.1~3.4GHz |
| Chipset |
Intel® PCH C206 + SPI |
| DRAM |
4 x 240-pins DDR3 DIMM, Max.
32GB, DDR3 1333/1066Hz ECC,
Non-ECC Memory Dual Channel Memory Architecture |
| BIOS |
AMI BIOS |
| Watchdog |
1~255 secs Watchdog timer
selectable |
| Power Supply |
Support ATX power |
| Power Requirement |
+5V, +12V, -12V,+3.3V, +5VSB |
| Dimension |
305mm x 244mm (12" x 9.6") |
| Certificate |
FCC / CE |
| Power Consumption |
+5V:1.6A , +12V:6.8A
,+3.3V:0.7A, +5VSB:0.25A
(Xeon® E3-1275 3.4GHz) |
|
>> I/O Ports |
|
| SATA Interface |
2 x SATA III (6.0Gb/s),
4 x SATA II (3.0Gb/s), (Raid 0,1,10,5) |
| FDD Interface |
1 x FDD connector with
34-pin box-header on board |
| Expansion BUS |
1 x PCI-E(16x) , 2 x
PCI-E(4x) , 4 x PCI slot , 1x Mini PCIe |
| TPM |
TPM1.2 with 20-pin
header on board for TPM (Trusted
Platform Module) |
| Serial Port |
4 x COM port, COM 1/3/4
for RS-232, COM 2 for RS-232/422/485 |
| Parallel Port |
1 x Parallel port (SPP/EPP/ECP) |
| IrDA |
1 (SIR) |
| Keyboard |
PS/2 connector, with
mini DIN connector |
| Mouse |
PS/2 connector, with
mini DIN connector |
| LAN |
LAN 1: Intel® 82579LM
(10/100/1000 Mbps)
LAN 2: Intel® 82583V (10/100/1000 Mbps)
Support Wake-on-LAN with ATX power |
| Audio |
High definition audio;
Realtek ALC888S with Mic / Line-In /
Line-Out |
| DI/O |
8 in / 8 out |
| USB |
12 x USB 2.0 |
|
|
>> Display |
|
| Graphics |
Build-in processor,
share system memory
Supports VGA, Display port
* Discrete graphic card is necessary for
dispay if the chosen CPU doesn't have
integrated graphics support.
|
|
|
>> Environment |
|
| Operation Temp. |
0° ~ 60°C (32° ~ 140°F) |
| Storage Temp. |
-40° ~ 85°C (-40° ~
185°F) |
| Humidity |
Operation humidity 20 ~
90%
Storage humidity 20 ~ 95% |
|
|
|
|
| |
|
|
|
