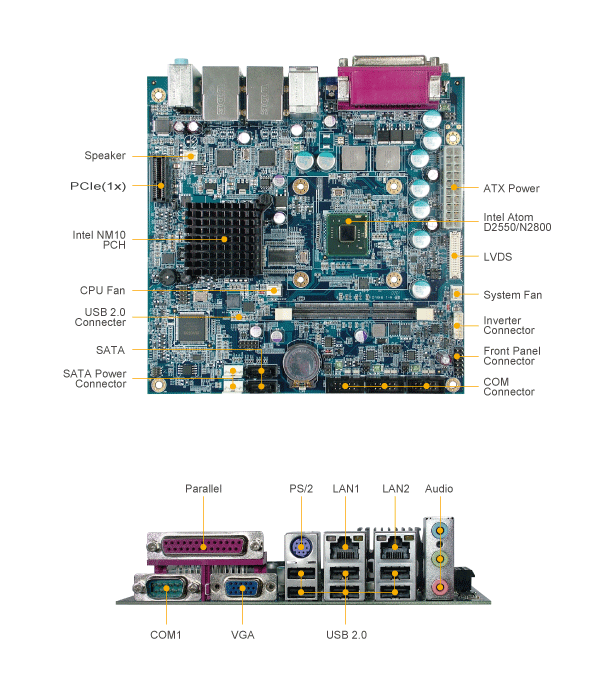

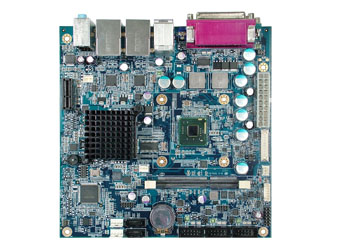

IPC-MP852
|
Mini ITX MB
supports Intel® Atom™ D2550 / N2800 CPU with VGA/ LVDS/ Audio/ 2LAN/ 4COM
|
|
|
|
|
|
Features
|
>
|
Intel® Atom™ D2550 1.86GHz / N2800 1.86GHz
processor
|
|
>
|
Equipped with NM10 Chipset
|
|
>
|
Memory Support DDR3 SO-DIMM 800/1066 MHz SDRAM up
to 4GB
|
|
>
|
Support Dual Gigabit LAN
|
|
>
|
Support 2 x SATA II, 8 x USB 2.0 port,4 x Serial
port and 1 x Parallel port
|
|
>
|
Expansion Slot for one PCIe(1x)
|
|
|
|
|
Specifications
|
>>
Systems
|
|
|
CPU
Support
|
Intel®
Atom™ D2550 Processor
Intel® Atom™ N2800 Processor
|
|
CPU
Frequency
|
D2550
(1.86GHz) / N2800 (1.86GHz)
|
|
Chipset
|
NM10
|
|
DRAM
|
1 x
204Pin DDR3 SO-DIMM
support 800/1066 MHz up to 4GB
|
|
BIOS
|
AMI BIOS
|
|
Watchdog
|
1~255 sec
Watchdog timer selectable
|
|
Power
Supply
|
ATX
|
|
Power
Consumption
|
+12V:0.68A
; -12V:0.01A ; +5V:1.61A ; +3.3V:0.14A ; 5VSB: 0.37A
(CPU: Atom D2550 1.86Ghz)
+12V:0.62A ; -12V:0.01A ; +5V:1.38A ; +3.3V:0.13A ; 5VSB: 0.36A
(CPU: Atom D2880 1.86Ghz)
|
|
Dimension
|
170mm x
170mm (6.69" x 6.69")
|
|
Certificate
|
FCC / CE
|
|
OS
Support
|
Windows
7(32bit)
|
|
>>
I/O Ports
|
|
|
SATA
Interface
|
2 x
SATA II (3.0Gb/s)
|
|
Expansion
BUS
|
1 x PCIe(1x)
|
|
Serial Port
|
4 x COM
port,
COM 1, COM 3 & COM 4 for RS-232, COM 2 for RS-232/422/485
Support 5V/12V
|
|
Parallel Port
|
1 x
Parallel port (SPP / EPP / ECP)
|
|
Keyboard
|
Mini
DIN connector
|
|
Mouse
|
Mini
DIN connector
|
|
LAN
|
LAN1:
Intel® 82583V (10/100/1000 Mbps)
LAN2: Intel® 82583V (10/100/1000 Mbps)
Support Wake-on-LAN with ATX power
|
|
Audio
|
HD
Audio, Realtek ALC888S
|
|
USB
|
8 x
USB2.0
|
|
|
>>
Display
|
|
|
Graphics
|
Build-in
D2550 / N2800 processor, share system memory;
Support 1 x VGA
1 x LVDS
|
|
LCD
Interface
|
18/24
bit LVDS
|
|
|
*Discrete
graphic card is necessary for display if the chosen CPU doesn't have
integrated graphics support.
|
|
|
>>
Environment
|
|
|
Operation
Temp
|
0° ~
60° C ( 32° ~ 140° F )
|
|
Storage
Temp
|
- 40° ~
85° C ( - 40° ~ 185° F )
|
|
Humidity
|
Operation
humidity 20 ~ 90%, storage humidity 20 ~ 95%
|
|
|
|
