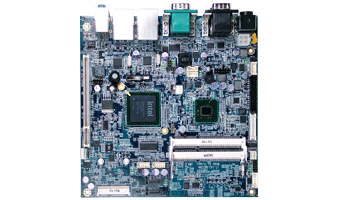

IPC-MP822 Intel® Atom™ N455/D525 Mini ITX MB w/VGA/ LVDS/ Audio/ 2LAN

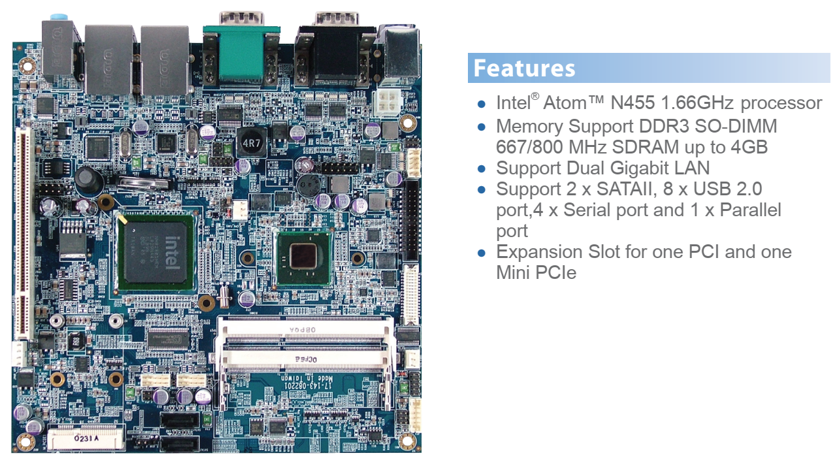

> Support Intel® Atom™ N455 1.66GHz / D525 1.8GHz processor
> Memory support DDR3 SO-DIMM 667/800MHz SDRAM up to 4GB (Max.)
> Support two 10/100/1000 Mbps Ethernet
> Supports 2 x SATAII, 8 x USB 2.0 Port, 4 x Serial Port and 1 x Parallel Port
> Expansion Slot for 1 x Mini PCIe

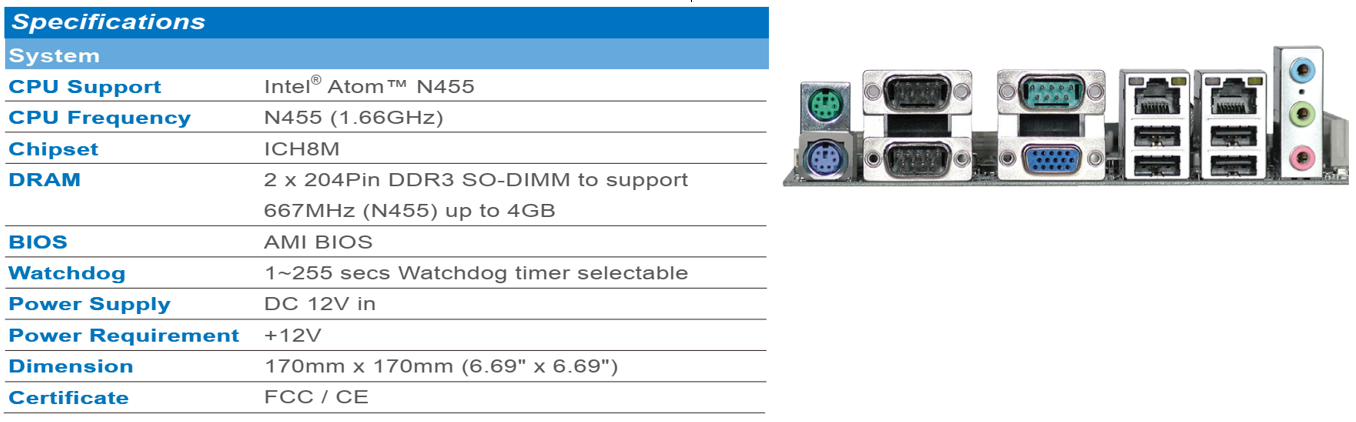

>> Systems
CPU Support Intel® ATOM™ N455 / D525 processor
CPU Frequency N455 (1.66GHz) / D525 (1.8GHz)
Chipset ICH8M
DRAM 2 x 204Pin DDR3 SO-DIMM to support 667MHz (N455) /800 MHz (D525) up to 4GB
Watchdog 1~255 secs Watchdog timer selectable
Power Supply DC 12V in
Power Requirement +12V
Dimension 170mm x 170mm (6.69" x 6.69")
Certificate FCC / CE

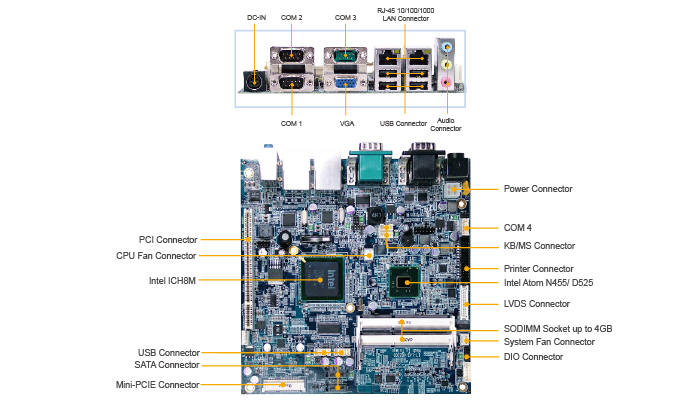

>> I/O Ports
SATA Interface 2 x S-ATA II connector
SSD 1 x Compact Flash slot (IDE)
Expansion BUS 1 x Mini PCIe
TPM 1 x TPM ping header on board
Serial Port 4 x COM port, COM 1, COM 2 & COM 4 for RS-232, COM 3 for RS-232/422/485
Parallel Port 1 x Parallel port (SPP / EPP / ECP)
Keyboard Mini DIN connector
Mouse Mini DIN connector
LAN LAN1: Intel® 82567V (10/100/1000 Mbps)
LAN2: Intel® 82583V (10/100/1000 Mbps)
Support Wake-on-LAN with ATX power
Audio HD Audio, Realtek ALC888S
USB 8 x USB2.0
>> Display
Graphics Build-in N455 / D525 processor, share system memory;
Supports VGA, LVDS
LCD Interface 18 bit LVDS
>> Environment
Operation Temp. 0° ~ 60°C (32° ~ 140°F)
Storage Temp. -40° ~ 85°C (-40° ~ 185°F)
Humidity Operation humidity 20 ~ 90%
Storage humidity 20 ~ 95%
