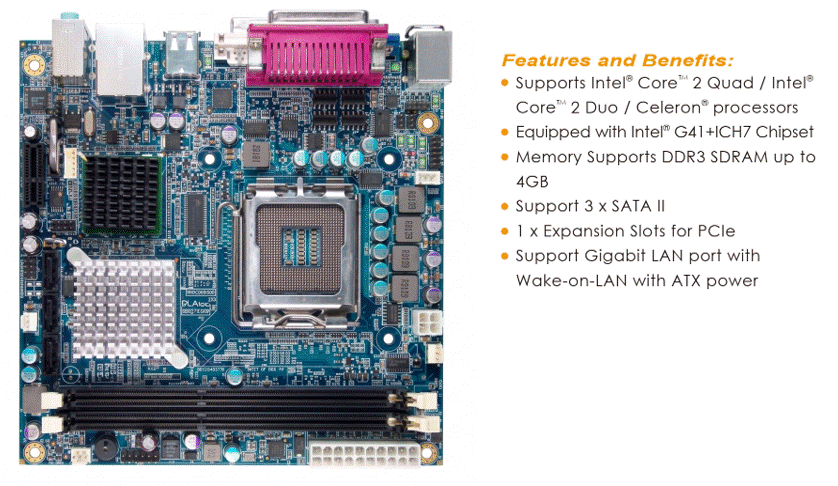

FEATURES
|
| > |
Support Intel®
Core™ 2 Quad / Intel® Core™ 2 Duo / Celeron® processors
|
| > |
Equipped with
Intel® G41+ICH7 Chipset
|
| > |
Memory Supports
DDR3 SDRAM up to 4GB |
|
> |
Support 3 x SATA II |
|
> |
1 x Expansion Slot for PCIe
|
|
> |
Support Gigabit LAN port
with Wake-on-LAN with ATX power |
|
|
|

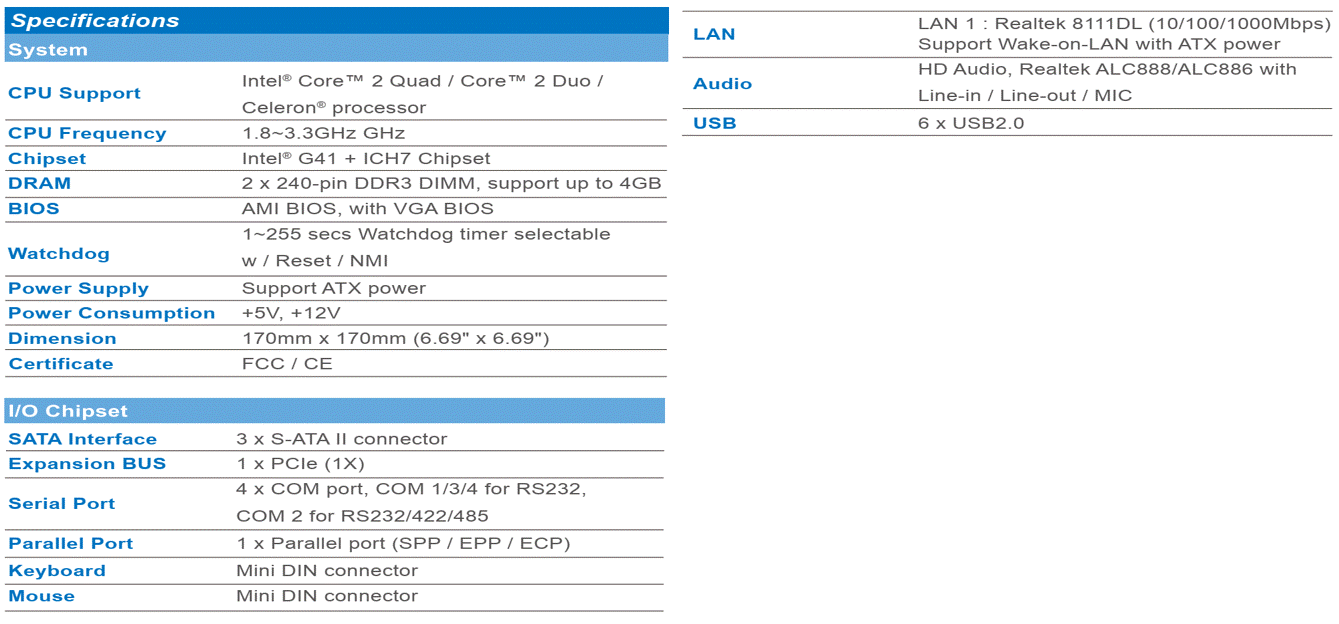

Specifications |
|
>> Systems |
|
| CPU Support |
Intel® Core™ 2 Quad / Core™ 2 Duo /
Celeron® processor |
| CPU Frequency |
1.8~3.3GHz |
| Chipset |
Intel® G41+ICH7 Chipset |
| DRAM |
2 x 240-pin DDR3 DIMM, support up to 4GB |
| BIOS |
AMI BIOS, with VGA BIOS |
| Watchdog |
1~255 secs Watchdog timer selectable w /
Reset / NMI |
| Power Supply |
Support ATX power |
| Power Requirement |
+5V, +12V |
| Power Consumption |
+5V: 2.238A / +12V : 2.027A (Intel®
E1500 CPU) |
| Dimension |
170 mm x 170 mm (6.69" x 6.69") |
| Certificate |
FCC/ CE |
|
>> I/O Ports |
|
| SATA Interface |
3 x S-ATA II connector |
| Expansion BUS |
1 x PCIe (1X) |
| Serial Port |
4 x COM port, COM 1/3/4 for
RS232, COM 2 for RS232/422/485 |
| Parallel Port |
1 x Parallel port (SPP/EPP/ECP) |
| IrDA |
1 (SIR) (Jumper selected for COM
2/IrDA ) |
| Keyboard |
Mini DIN connector |
| Mouse |
Mini DIN connector |
| LAN |
LAN 1 : Realtek 8111DL
(10/100/1000Mbps)
Support Wake-on-LAN wtih ATX power |
| Audio |
HD Audio, Realtek ALC888/ ALC886
With Line-in / Line-out / MIC |
| USB |
6 x USB2.0 |
|
|
>> Display |
|
| Graphics |
Built-in Intel® GMA X4500
(Dynamic Video Memory Technology 5.0) |
| VGA |
1 x D-Sub Connector |
| DVI |
1 x DVI-D stack |
|
|
>> Environment |
|
| Operation Temp. |
0° ~ 60°C (32° ~ 140°F) |
| Storage Temp. |
-40° ~ 85°C (-40° ~ 185°F) |
| Humidity |
Operation humidity 20 ~ 90%
Storage humidity 20 ~ 95% |
|
|
|
|
