FEATURES
|
| > |

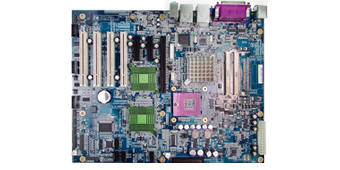

Low power high performance ATX motherboard |
| > |
DDRII 667/800MHz support dual channel memory
architecture up to 4GB
|
| > |
Support MPEG4 decode engine |
|
> |
Support 4 x SATA, 10 x USB 2.0 Port and 4
x Serial port |
|
> |
Expansion slots for one PCI-E(16x), two
PCI-E(4x) and four PCI slots |
|
|
|
Specifications |
|
>> Systems |
|
| CPU Type |
Intel® Core™ 2 Duo / Celeron® processor
(Support Intel® 45nm Penryn CPU) |
| Chipset |
Intel® GM45 + ICH9M-E / ICH9M + SPI
(FSB: 667 / 800 / 1066 MHz) |
| DRAM |
2 x 200-pin DDR2 SO-DIMM to support
667/800 MHz up to 4GB |
| BIOS |
Phoenix Award PnP BIOS with 32 MB size
flash, with VGA BIOS |
| Watchdog |
1~255 secs Watchdog timer selectable |
| Power Supply |
Support ATX power |
| Power Requirement |
+5V, +12V, +3.3V, +5VSB |
| Dimension |
305mm x 244mm (12" x 9.6") |
| Power Consumption |
+5V: 2.48A / +12V:2.65A/ +3.3V:0.74A (CPU:Core™
2 Duo T9400) |
| Certificate |
FCC / CE |
| CPU Frequency |
Core™ 2 Duo 2.26~2.53GHz |
|
>> I/O Ports |
|
| SATA Interface |
4 x S-ATA II connector (Raid
0,1,10,5) ICH9M-E support |
| TPM |
TPM 1.2 with 20-pin header on
board for TPM (Trusted Platform Module) |
| Serial Port |
4 x COM port, COM1/3/4 for
RS-232, COM2 for RS-232/422/485 |
| Parallel Port |
1 x Parallel port (SPP / EPP /
ECP) |
| IrDA |
1 (SIR) |
| Keyboard |
PS/2 connector, with mini DIN
connector |
| Mouse |
PS/2 connector, with mini DIN
connector |
| USB |
10 x USB 2.0 |
| LAN |
LAN 1:Intel® 82567LM
(10/100/1000Mbps)
LAN 2:Intel® 82573V (10/100/1000Mbps)
Supports Wake-on-LAN with ATX power |
| Audio |
High definition audio
Reatel ALC888S, with Mic / Line-out / Line-in |
| DIO |
8 in / 8 out |
| FDD Interface |
1 x FDD connector with 34-pin
Boxheader on board |
| Expansion BUS |
1 x PCI-E(16x), 2 x PCI-E(4x), 4
x PCI slot |
|
|
>> Display |
|
| Graphics |
Built-in Intel® GM45, share
system memory (Intel® GMA 4500MHD, supports
Direct X10); Supports VGA, LVDS, TV |
| LCD Interface |
24/48 bit LVDS |
|
|
>> Environment |
|
| Operation Temp. |
0° ~ 60°C (32° ~ 140°F) |
| Storage Temp. |
-40° ~ 85°C (-40° ~ 185°F) |
| Humidity |
Operation humidity 20 ~ 90%
Storage humidity 20 ~ 95% |
|
|
|
|
