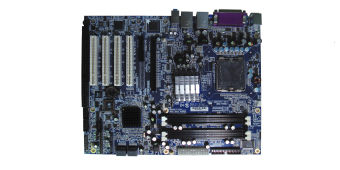

IPC-MP601R

New Intel Q965 ATX Motherboard Supports Intel Core 2 Duo Processors for Best in Class Performance











   FEATURES



>

Support Intel Core 2 Duo, Intel Celeron D, Intel Pentium D and Intel Pentium 4 processors

>

Equipped with Intel Q965 Chipset with FSB 1066MHz

>

Memory Supports DDR 800 SDRAM up to 8GB

>

Expansion Slots for PCI-E x16, PCI & ISA

>

Applications such as gaming, medical, multimedia systems, digital image storage servers and more

   Specifications

>> Systems



CPU

Intel Celeron D,Pentium 4,Pentium D,Core 2 Duo processor

Chipset

Intel Q965 + ICH8DO + FWH

DRAM

4 x 240-pin DDR2 DIMM,support DDR2 800 SDRAM up to 4GB

BIOS

PhoenixAward PnP BIOS Memory size 8 Mbytes

Watchdog

Built-in from Super I/O

Power Supply

Support ATX Power

Power Requirement

+5V, +12V, +3.3V, -12V, +5VSB

Power Consumption

+5V : 3.2A / +12V : 10.45A / +3.3V : 5.32A / -12V : 0.06A / +5VSB : 0.52A (Pentium 4 3.4GHz)

Dimension

305mm x 244mm (12" x 9.61")



>> I/O Ports



SATA Interface

Six ports S-ATA connector

FDD Interface

One FDD connector with 34-pin Boxheader on board

Function BUS

1 x PCI-E 16X ; 1 x PCI-E 4X ; 4 x PCI ; 1 x ISA

Serial Port

COM1/3/4 for RS-232, COM2 for RS-232/422/485 (COM 3/4 can output +5V or +12V, and use Jumper settings)

Parallel Port

1 x parallel (SPP / EPP / ECP)

IrDA

1 (SIR)

Keyboard

Mini DIN connector

Mouse

Mini DIN connector

LAN

Lan 1:Intel 82573V (10/100/1000Mbps)
Lan 2:Intel 82573V (10/100/1000Mbps)
Supports Wake-on-LAN

Audio

HD Codec, Reatel ALC262, with Mic / Line-out / Line-in

USB

10 ports, support USB 2.0



>> Display



Graphics

Built-in Intel Q965, share system memory, Support CRT, PCI-E 16X (SDVO)



>> Environment



Operation Temperature

0~60C(32~140F)

Storage Temperature

-40~85C(-40~185F)

Humidity

Operation Humidity 20~90%, Storage Humidity 20~95%

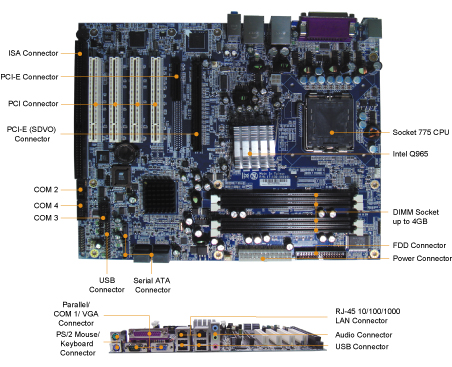

   Highlights
