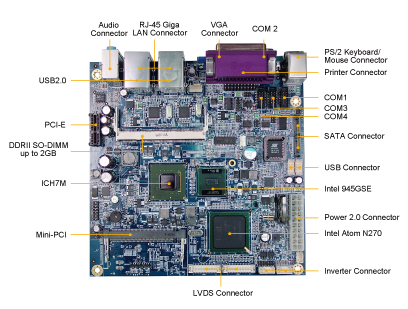

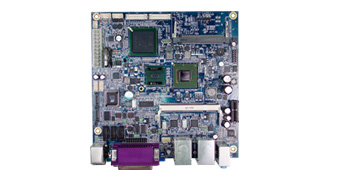

IPC-MP587R Intel Atom ITX MB W/VGA/LVDS/Audio/LAN
> IntelŪ AtomŪ N270 (1.6GHz) CPU on board
> IntelŪ 945GSE + ICH7M+ FWH (FSB:533MHz)
> 1 x 200-Pin DDR SO-DIMM, supports DDR2 400/533 up to 2GB
>> Systems
CPU Type IntelŪ Atom N270 (1.6GHz) CPU on board
CPU Frequency 1.6GHz
Chipset IntelŪ 945GSE + ICH7M
DRAM 1 x 200-Pin DDR SO-DIMM, supports DDR2 400/533 up to 2GB
BIOS Phoenix-Award PnP BIOS, with VGA BIOS
Watchdog 1~255 secs Watchdog timer selectable w /Reset / NMI
Power Supply Supports ATX / AT Power, Standard ATX connector 20 pin
Power Requirement +5V, +12V
Dimension 170mm x 170 mm (6.69"X 6.69")
>> I/O Ports
SATA Interface 2 x SATA connector
CF 1 x CF
Expansion BUS Ver A: 1 x PCI-E by1, 1 x MiniPCI (1 x MiniPCI-E)
Serial Port 4 ports, COM 1/3/4 for RS-232, COM 2 for RS-232/422/485
Parallel Port 1 x parallel pin(DB-25pin) connector on top
Keyboard 1 x PS/2 connector for keyboard
Mouse 1 x PS/2 connector for mouse
USB 8 ports, supports USB 2.0
>> Display
Graphic Build-in 945GSE,
LCD Interface LVDS1 : Only support 18 bit,
>> Environment
Operation Temperature 0°~60°C(32°~140°F)
Storage Temperature -40°~85°C(-40°~185°F)
Humidity Operation Humidity 20~90%, Storage Humidity 20~95%
