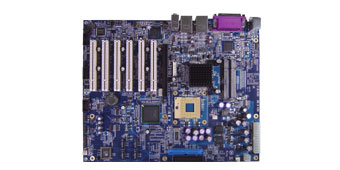

IPC-MP532R Intel Core Motherboard w / VGA / Sound / 2LAN



   FEATURES
> Support Intel Core / Celeron M CPU up to 2.33GHz
> Equipped with Intel 945GME Chipset with FSB 667MHz
> Memory Supports DDR2 667 SDRAM up to 3GB
> Support 4 x SATA and IDE Interfaces
> Expansion Slots for PCI-E x 16 and PCI
> Support 2 x Gigabit LAN ports with Wake-on-LAN
   Specifications
>> Systems
CPU Type Intel Core / Celeron M processor
CPU Frequency 1.46~2.23 GHz
Chipset Intel 945GME + ICH7 (FSB : 533/667MHz)
DRAM 2 x 200-pin DDR2 SO-DIMM,
Support DDR II 667 SDRAM up to 3GB
BIOS Phoenix-Award PnP BIOS, with VGA BIOS
Watchdog 1~255 secs Watchdog timer selectable w / Reset / NMI
Power Supply Support ATX Power
Power Requirement +5V , +12V
Power Consumption +5V : 2.51A / +12V : 1.94A (Core Duo T2500)
Dimension 305mm x 244mm (12" x 9.61")

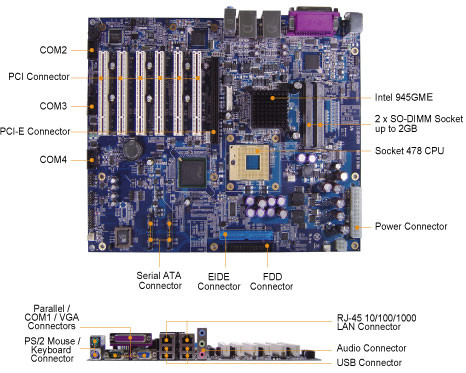

>> I/O Ports
IDE Interface 1 x 40-pin IDE (UDMA 33/66/100)
S-ATA Interface 4 S-ATA connector (Raid 0,1,5,10)
FDD Interface 1
Bus Interface 1 x PCI-E (16x) slot (SDVO), 6 x PCI slots
Serial Port 4 x COM ports, COM1/3/4 for RS232, COM2 for RS232/422/485 ( for 16550 compatible type of UART)
Parallel Port 1 x parallel (SPP / EPP / ECP)
IrDA 1 (SIR)
Keyboard Mini DIN connector
Mouse Mini DIN connector
LAN LAN 1 : Intel 82573V (10/100/1000Mbps)
LAN 2 : Intel 82573V (10/100/1000Mbps)
Support Wake-on-LAN wtih ATX power
Audio AC '97 Codec, Realtek ALC655, With Line-in / Line-out / MIC
USB 8 x USB 2.0

>> Display
Graphics Built-in Intel 945GME, share system memory, CRT, LVDS, SDVO, PCI-E 16X, TV
LCD Interface 18/24-bit LVDS

>> Environment
Operation Temperature 0~60C(32~140F)
Storage Temperature -40~85C(-40~185F)
Humidity Operation Humidity 20~90%, Storage Humidity 20~95%
