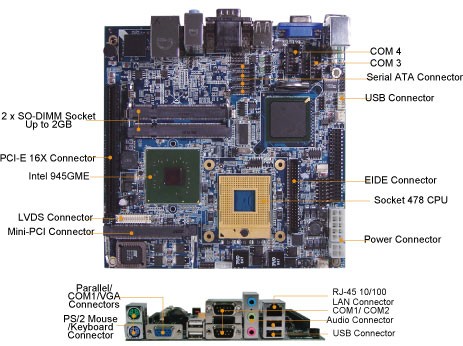

IPC-MP531R Intel Core Duo / Celeron M Mini-ITX Motherboard w / VGA / Sound / 1LAN


   FEATURES
> Support Intel Core / Celeron M up to 2.33GHz
> Equipped with Intel 945GME Chipset with FSB 667MHz
> Memory Supports DDR2 667 SDRAM up to 4GB
> Support 4 x SATA and IDE Interfaces
> Expansion Slots for PCI-E x 16, Mini-PCI
> Support Gigabit LAN port with Wake-on-LAN
   Specifications
>> Systems
CPU Support Intel Core Duo / Celeron M Mini-ITX Motherboard w / VGA / Sound / 1LAN
CPU Frequency 1.46~2.23 GHz
Chipset Intel 945GME + ICH7 (FSB : 533/667MHz)
DRAM 2 x 200-pin DDR2 DIMM, support DDR II 667 SDRAM up to 4GB
BIOS Phoenix-Award PnP BIOS, with VGA BIOS
Watchdog 1~255 secs Watchdog timer selectable w / Reset / NMI
Power Supply Support AT / ATX power
Power Requirement +5V, +12V
Power Consumption 5V : 2.238A / +12V : 2.027A (Core Duo T2500)
Dimension 170mm x 170mm (6.69" x 6.69")
Certificate FCC/CE
>> I/O Ports
IDE Interface 1 x 44-pin IDE
SATA Port 4 x S-ATA connector (Raid 0,1,5,10)
SSD 1 x compact flash slot (IDE)
Expansion Bus 1 x PCI-E (16x) slots (SDVO), Mini PCI
Serial Port 4 x COM ports, COM1/3/4 for RS232, COM2 for RS232/422/485
( for 16550 compatible type of UART)
IrDA 1 (SIR)
Keyboard Mini DIN connector
Mouse Mini DIN connector
LAN LAN 1: Intel 82573V (10/100/1000 Mbps)
Support Wake-on-LAN wtih ATX power
Audio AC '97 Codec, Realtek ALC655 With Line-in / Line-out / MIC
USB 6 x USB 2.0
>> Display
Graphics Built-in Intel 945GME, share system memory, Support CRT, LVDS, SDVO, TV
LCD Interface 18-bit LVDS
>> Environment
Operation Temperature 0~60C(32~140F)
Storage Temperature -40~85C(-40~185F)
Humidity Operation Humidity 20~90%, Storage Humidity 20~95%
