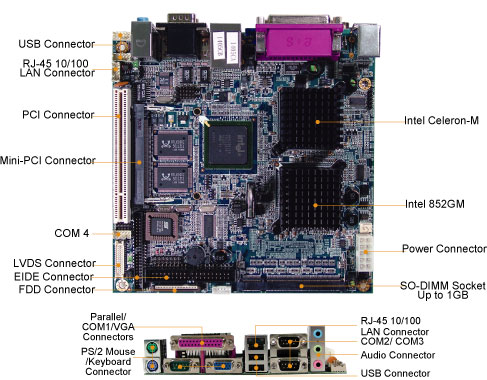

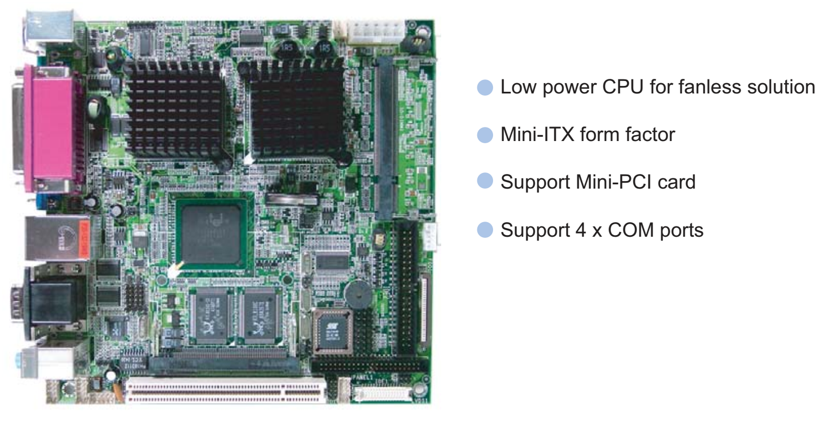

FEATURES
|
| > |
Low power CPU
for fanless solution
|
| > |
Mini-ITX form
factor |
| > |
Support
Mini-PCI card |
| > |
Support 4 x COM
ports
|
|
|
|

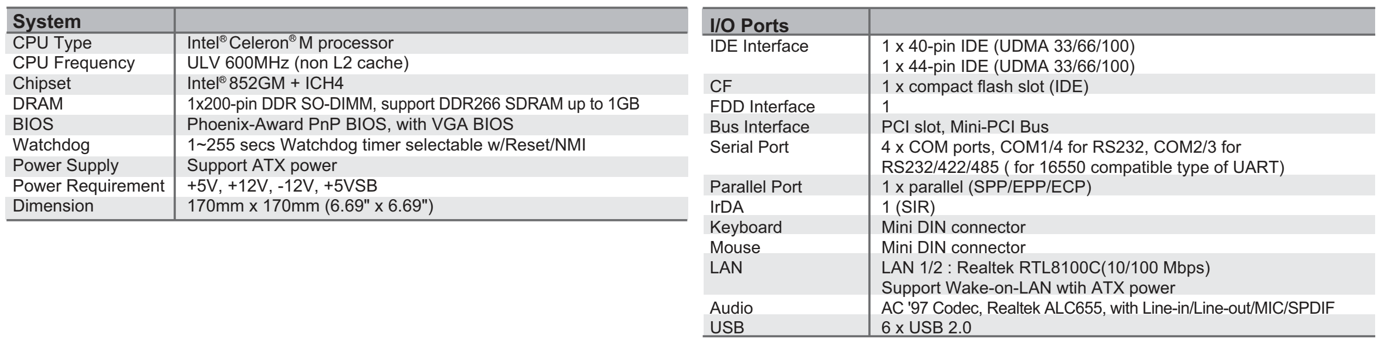

Specifications |
|
>> Systems |
|
| CPU Type |
Intel Celeron M processor |
| CPU Frequency |
ULV 600MHz (L2 cache) / ULV 1GHz (non L2
cache) |
| Chipset |
Intel 852GM + ICH4 (FSB : 400MHz) |
| DRAM |
1 x 200-pin DDR SO-DIMM, support DDR266
SDRAM up to 1GB |
| BIOS |
Phoenix-Award PnP BIOS, with VGA BIOS |
| Watchdog |
1~255 secs Watchdog timer selectable
w/Reset/NMI |
| Power Supply |
Support AT/ATX power |
| Power Requirement |
+5V, +12V, -12V |
| Power Consumption |
LAN 1 : Realtek RTL8100C(10/100Mbps)
|
| Dimension |
170mm x 170mm (6.69" x 6.69") |
|
>> I/O Ports |
|
| IDE Interface |
1 x 40-pin IDE (UDMA 33/66/100),
1 x 44-pin IDE |
| CF |
1 x compact flash slot (IDE) |
| FDD Interface |
1 |
| Bus Interface |
PCI slot, Mini-PCI |
| Serial Port |
4 x COM ports, COM1/4 for RS232,
COM2/3 for RS232/422/485 (for 16550 compatible
type of UART) |
| Parallel Port |
1 x parallel (SPP/EPP/ECP) |
| IrDA |
1 (SIR) |
| Keyboard |
Mini DIN connector |
| Mouse |
Mini DIN connector |
| LAN |
Intel 82562EM (10/100Mbps)
Support Wake-on-LAN with ATX power |
| Audio |
AC '97 Codec, Realtek ALC202A
with Line-in/Line-out/MIC |
| USB |
6 x USB 2.0 |
|
|
>> Display |
|
| Graphics |
Built-in Intel 852GM, share
system memory, Support CRT, LVDS |
| LCD Interface |
18/36-bit LVDS |
|
|
>> Environment |
|
| Operation
Temperature |
0°~60°C(32°~140°F) |
| Storage Temperature |
-40°~85°C(-40°~185°F) |
| Humidity |
Operation Humidity 20~90%,
Storage Humidity 20~95%
|
|
|
|
|
