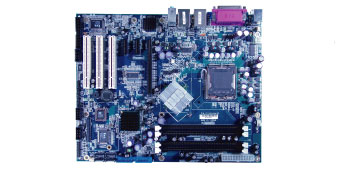

IPC-MP441R Socket 775 Pentium 4 Motherboard with VGA/Sound/2LAN

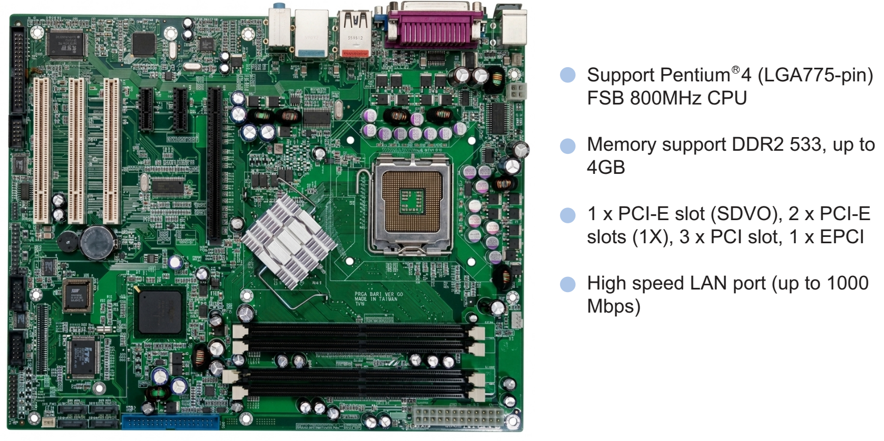

   FEATURES
> Support Pentium 4 (LGA775-pin) FSB 800MHz CPU
> Memory support DDR2 533, up to 4GB
> 1 x PCI-E slot (SDVO), 2 x PCI-E slots (1X), 3 x PCI slot, 1 x EPCI
> High speed LAN port (up to 1000 Mbps)
   Specifications

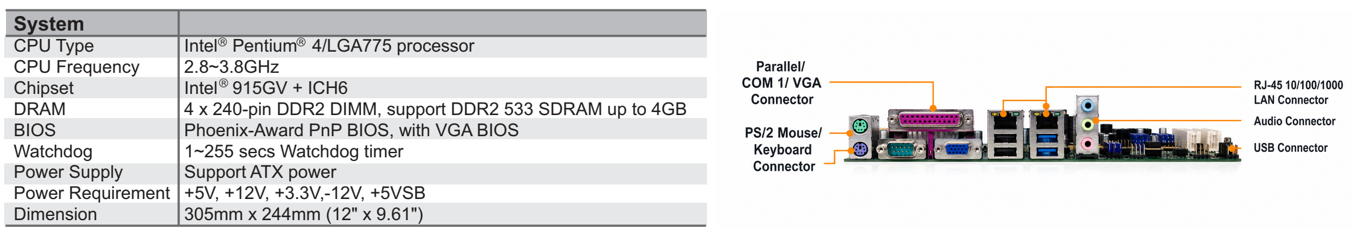

>> Systems
CPU Type Intel Pentium 4/LGA775 processor
CPU Frequency 2.8~3.8GHz
Chipset Intel 915GV + ICH6 (FSB : 400/533/800MHz)
DRAM 4 x 240-pin DDR2 DIMM, support DDR2 533 SDRAM up to 4GB
BIOS Phoenix-Award PnP BIOS, with VGA BIOS
Watchdog 1~255 secs Watchdog timer
Power Supply Support ATX power
Power Requirement +5V, +12V, +3.3V,-12V, +5VSB
Power Consumption +5V : 3.2A / +12V : 10.45A / +3.3V : 5.32A /

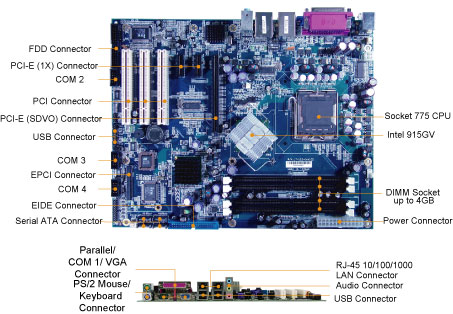

>> I/O Ports
IDE Interface 1 x 40-pin IDE (UDMA 33/66/100)
SATA Port 4 x SATA (from ICH6)
FDD Interface 1
Bus Interface 1 x PCI-E slot (SDVO), 2 x PCI-E slots (1X), 3 x PCI slot, 1 x EPCI
Serial Port 4 x COM ports, COM1/3/4 for RS232, COM2 for RS232/422/485 ( for 16550 compatible type of UART)
Parallel Port 1 x parallel (SPP/EPP/ECP)
IrDA 1 (SIR)
Keyboard Mini DIN connector
Mouse Mini DIN connector
LAN LAN 1 : Intel 82562ET (10/100Mbps)
LAN 2 : Intel 82541PI (10/100/1000Mbps)
Support Wake-on-LAN with ATX power
Audio AC '97 Codec, Realtek ALC655, with Line-in/Line-out/MIC
USB 8 x USB 2.0

>> Display
Graphics Graphics Built-in Intel 915GV, share system memory, Support CRT, PCI-E (SDVO)

>> Environment
Operation Temperature 0~60C(32~140F)
Storage Temperature -40~85C(-40~185F)
Humidity Operation Humidity 20~90%, Storage Humidity 20~95%
