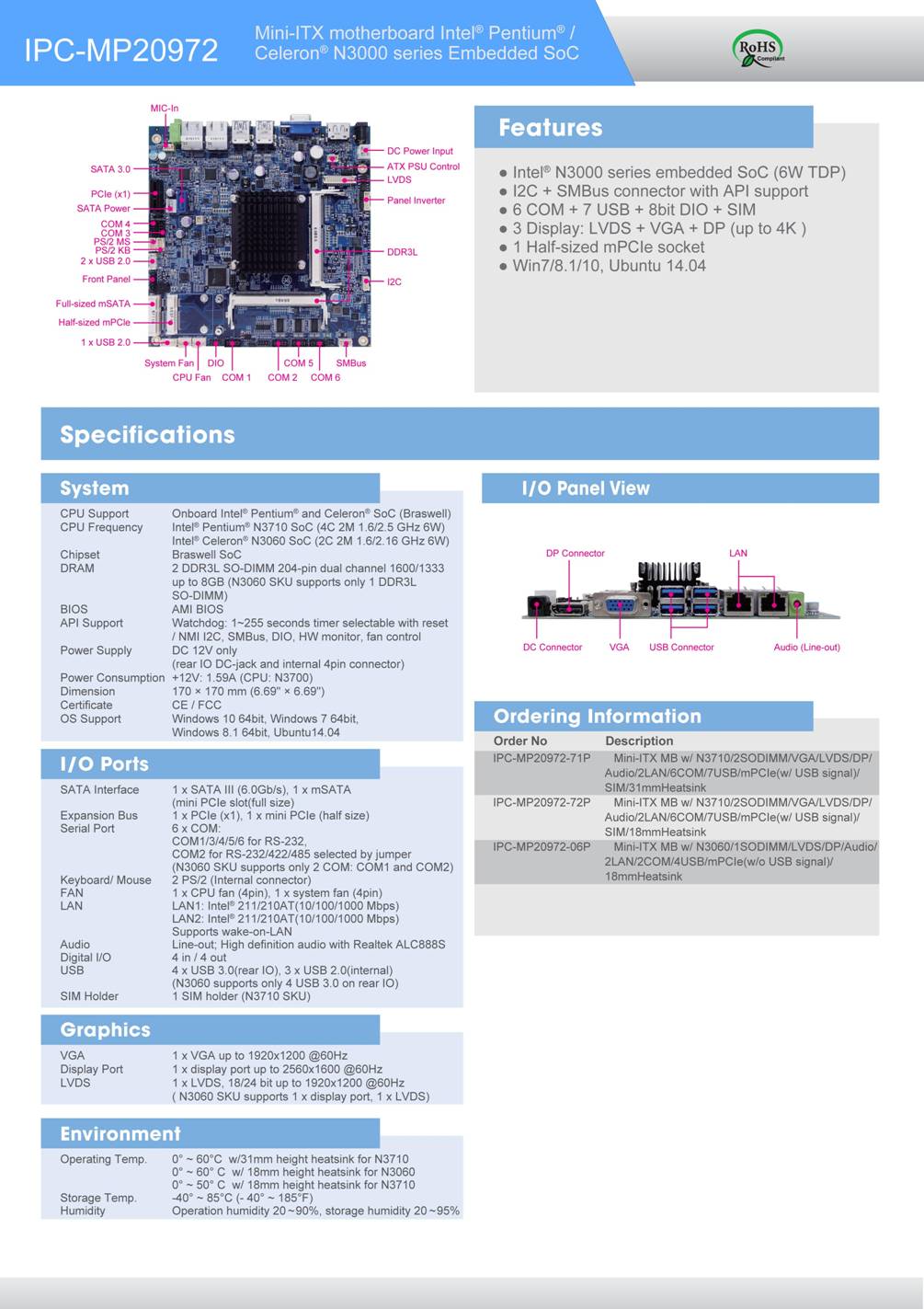

IPC-MP20972

Mini-ITX motherboard Intel® Pentium® N3710 SoC (Braswell)





    Features

>

2 DDR3L SO-DIMM sockets

>

1 VGA, 1 DP, 1 LVDS

>

6 COM, 4 USB 3.0, 3 USB 2.0, 8 DIO,1 SIM holder

>

Dual Gigabit LANs

>

1 SATA, 1 mSATA





        Specifications

>> Systems



CPU Support

Onboard Intel® Pentium®  SoC (Braswell),

CPU Frequency

Intel® Pentium ® N3710 SoC (4C 2M 1.6/2.5 GHz 6W)

Chipset

Braswell SoC

DRAM

2 DDR3L SO-DIMM 204-pin dual channel 1600/1333 up to 8GB

BIOS

AMI BIOS

API Support

Watchdog: 1~255 seconds timer selectable with reset / NMI I2C, SMBus, DIO, HW monitor, fan control

Power Supply

DC 12V only (rear IO DC-jack and internal 4pin connector)

Power Consumption

+12V: 1.59A

Dimension

170 x 170 mm (6.69" x 6.69")

Certificate

CE / FCC



>> I/O Ports



SATA Interface

1 x SATA III (6.0Gb/s), 1 mSATA

Expansion BUS

1 x PCIe (x1), 1 x mini PCIe (half size)

Serial Port

6 x COM:
COM1/3/4/5/6 for RS-232,
COM2 for RS-232/422/485 selected by jumper
(N3060 SKU supports only 2 COM: COM1 and COM2)

Keyboard/ Mouse

2 PS/2 (Internal connector)

FAN

1 x CPU fan (4pin), 1 x system fan (4pin)

LAN

LAN1: Intel® 211/210AT(10/100/1000 Mbps)
LAN2: Intel® 211/210AT(10/100/1000 Mbps)
Supports wake-on-LAN

Audio

Line-out; High definition audio with Realtek ALC888S

Digital I/O

4 in / 4 out

USB

4 x USB 3.0(rear IO), 3 x USB 2.0(internal)

SIM Holder

1 SIM holder

>> Display



VGA

1 x VGA up to 1920x1200 @60Hz

Display Port

1 x display port up to 2560x1600 @60Hz

LVDS

1 x LVDS, 18/24 bit up to 1920x1200 @60Hz



>> Environment



Operation Temp.

0° ~ 60° C ( 32° ~ 140° F ) passive cooler (default)
0° ~ 50° C , fanless (optional)

Storage Temp.

- 40° ~ 85° C ( - 40° ~ 185° F )

Humidity

Operation humidity 20 ~ 90%, storage humidity 20 ~ 95%
