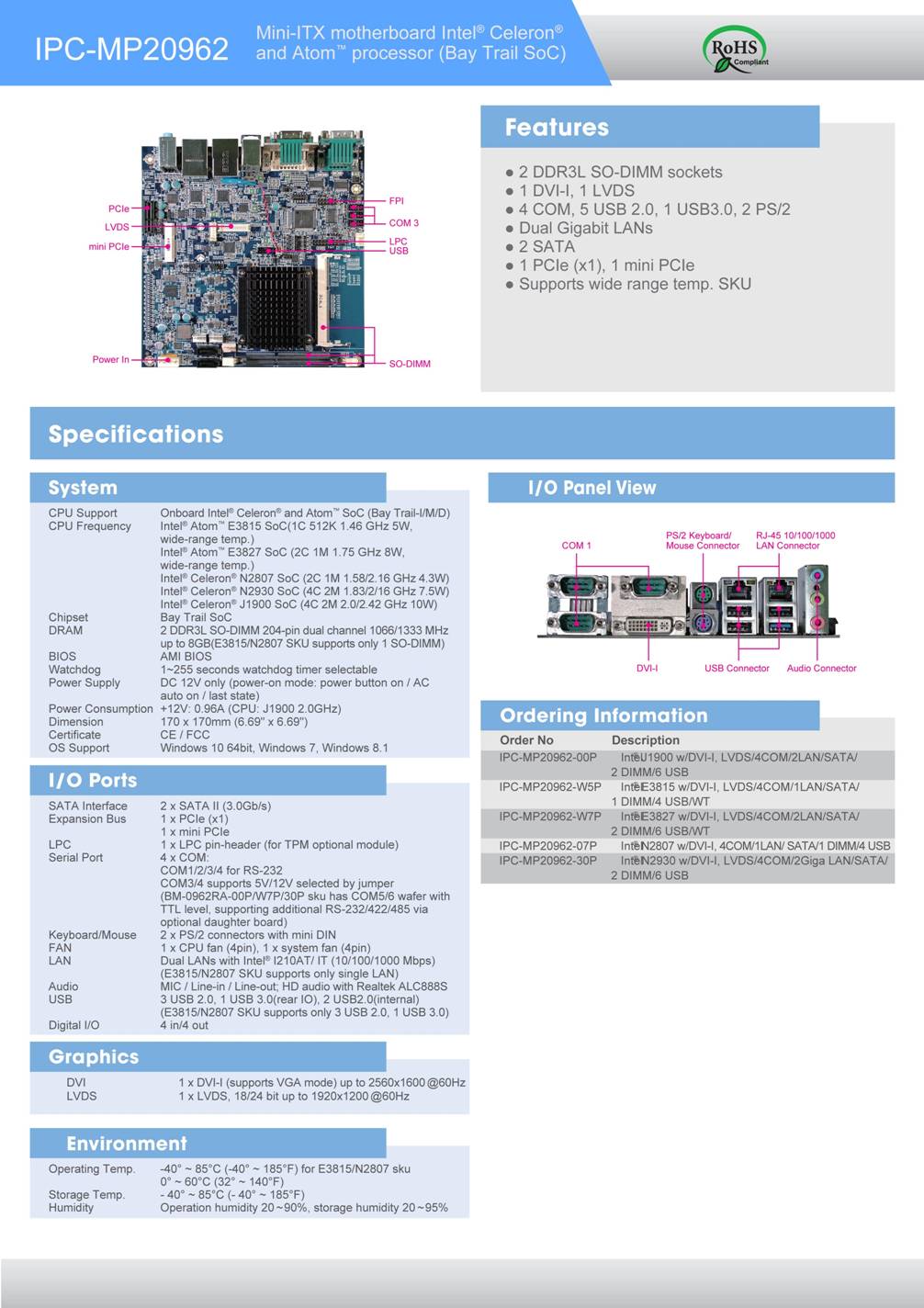

IPC-MP20962

Mini ITX MB supports Intel® Bay Trail SOC with DVI/ LVDS/ Audio/ 2LAN/ 6COM





       Features





  • Intel® Bay Trail-I, Bay Trail-M, and Bay Trail-D SOC



  • Memory Support DDR3L SO-DIMM 1333/1066 MHz SDRAM up to 8GB



  • Support Dual Gigabit LAN



  • Expansion Slot for one PCIe(1x) and one Mini PCIe



  • Support 6 USB, 6 COM Port, SATA, Audio



  • Support Wide temp SKU



   Specifications



System



CPU Support

Intel Bay Trail-M/D SOC

CPU Frequency

J1900: 2.0GHz  / N2930: 1.83GHz  /  N2807: 1.58GHz

Chipset

Bay Trail SOC

DRAM

2 x 204-pin DDR3L SO-DIMM, support dual channel DDR3L

BIOS

AMI BIOS

Watchdog

1 ~ 255 sec. Watchdog timer selectable

Power Supply

DC 12V in

Power Consumption

+12V: 0.96A (CPU: J1900/2.0GHz)

Dimension

170mm x 170mm (6.69” x 6.69”)

Certificate

FCC /  CE

OS Support

Windows 7, Windows 8





I/O Ports



SATA Interface

2 x SATA II (3.0GB/s)

Expansion BUS

1 x PCIe (1x)

1 x Mini PCIe

TPM

1 x TPM pin header onboard



Serial Port

6 x COM port

COM 1/2/3/4 for RS-232

COM5/6 support 233/422/485 via daughter board

COM3/4 support 5V/12V

Keyboard/Mouse

Mini DIN connector

FAN

1 x CPU Fan, 1 x System Fan



LAN

Dual Ports:

Intel I210AT (10/100/1000 Mbps)

Wide Temp.: Intel i2101T (10/100/1000 Mbps)

Audio

HD Audio, Raeltek ALC888S

USB

5 x USB2.0, 1 x USB3.0

GPIO

4 in / 4 out





Display





Graphics

Built-in processor, share system memory

1 DVI-I (support VGA mode)

1 X LVDS

LCD Interface

2CH 18/24 bit LVDS





Environment



Operation Temp.

WTG: -40 ~ 85C (-40 ~ 185F); Other 0 ~ 60 C (32 ~ 140 F)

Storage Temp.

-40 ~ 85 C (-40 ~ 185F)

Humidity

Operation humidity 20 ~ 90%, storage humidity 20 ~ 95%
