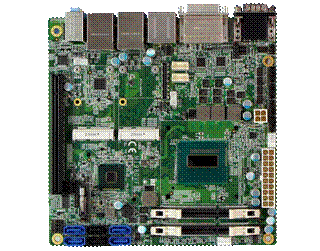

 FEATURES
- Onboard 4th Generation Intel® Core™ i7/i5/i3
/ Celeron® QC/DC processors
- 2x DDR3/DDR3L SO-DIMM, Max.
16GB
- Integrated VGA, supports DVI-I/ DVI-D/ LVDS or eDP/ DisplayPort
- 2x Intel® PCI-E Gigabit LAN
- Watchdog timer, Digital I/O, iAMT
(9.0), vPro, iSMART
- 6x USB 2.0, 4x USB 3.0, 6x COM, 4x SATA III, 2x SATA II
- 1x PCI-E(x16), 2x Mini PCI-E(x1)
|
|
|
Specifications
|
|
CPU Type
|
BGA1364 for 4th generation Intel® mobile Core™ i7/i5
/i3/ Celeron® QC/DC processors
|
|
System Memory
|
2x DDR3/DDR3L SO-DIMM, Max.
16GB (Non-ECC)
|
|
System Chipset
|
Intel® QM87 PCH
|
|
BIOS
|
AMI
|
|
Watchdog Timer
|
256 levels
|
|
SSD
|
1x mSATA via Mini PCI-E
(Thru SATA III)
|
|
H/W Monitor
|
Yes
|
|
Expansion Slot
|
1x PCI-E(x16), 2x Mini PCI-E(x1)
|
|
VGA Controller
|
4th Generation Intel®
Core i7/i5/i3 / Celeron® integrated Gfx, supports
CRT, DVI, DisplayPort, LVDS / eDP
|
|
VGA Memory
|
Max. Shared memory – 1024MB
|
|
Display Interface
|
Supports 24-bit dual channel LVDS/eDP,
DVI-I, DVI-D, DisplayPort
|
|
Controller
|
Intel® I217LM Gigabit LAN PHY
Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN)
|
|

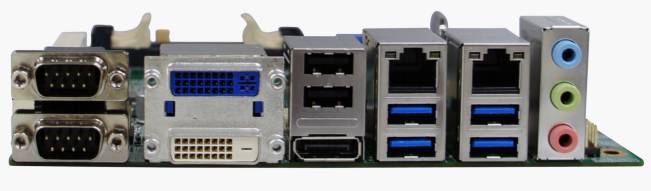

Connector
|
2x RJ-45 on board
|
|
I/O Chipset
|
Fintek F81866AD-I
1x RS-232/422/485 (jumperless selection)
5x RS232
4x SATA III, 2x SATA II
|
|
USB
|
2 ports on board, 4 ports
via pin-header (USB 2.0)
4 ports on board (USB 3.0)
|
|
Audio
|
Intel® QM87 PCH built-in HD audio controller + ALC892
w/ 7.1 channels
|
|
Others
|
Digital I/O (4-in/4-out), ATX power connector, iSMART support
|
|
Dimensions
|
170mm x 170mm (6.7" x 6.7")
|
|
Max. Power Requirement
|
Intel® Core™ i5-4402E 1.60 GHz
w/ 2x 2GB DDR3-1333
+3.3V: 0.29 A +5V: 0.73 A
+5Vsb: 1.70 A +12V: 2.01 A
|
|
Operating Temperature
|
0°C~60°C (32°F~140°F)
|
|
Storage Temperature
|
-20°C~80°C (-4°F~176°F)
|
|
Relative Humidity
|
10%~90% (non-condensing)
|
|
|
|
|
|
|
|
