Mini-ITX motherboard is based on the Intel QM77 Express Chipset





  • Supports 3rd Generation Intel® Core i7/i5/i3 / Celeron® QC/DC processors
  • 2x DDR3 SO-DIMM, Max. 16GB
  • iSMART - for EuP/ErP power saving,
    auto- scheduler and power resume
  • Integrated VGA, supports DVI-I/ DVI-D / LVDS/  DisplayPort
  • 2x Intel® PCI-E Gigabit LAN
  • Watchdog timer, Digital I/O, TPM 1.2
  • 6x USB 2.0, 4x USB 3.0, 4x COM, 4x SATA II,  2x SATA III
  • 1x PCI-E(x16), 2x Mini PCI-E(x1)




CPU Socket

rPGA988B for 3rd Generation Intel® Mobile Core™  i7/i5/i3/ Celeron®  QC/ DC processors

System Memory

2x DDR3 SO-DIMM, Max. 16GB (Non-ECC)

System Chipset

Intel® QM77 PCH (MI970VF) / HM76 PCH (MI970F)



Watchdog Timer

256 levels


1x mSATA via Mini PCI-E (Full-Size)

H/W Monitor


Expansion Slots

1x PCI-E(x16)
2x Mini PCI-E(x1) - w/ USB signal (1x Half-Size, 1x Full-Size)

VGA Controller

Intel® Core™ i7/i5/i3/ Celeron® integrated Gfx supports CRT, DVI, DisplayPort, LVDS

VGA Memory

Max. Shared memory – 1024MB

Display Interface

Supports 24-bit dual channel LVDS, DVI-I, DVI-D, DisplayPort


Intel® 82579LM(MI970VF) / 82579V(MI970F) Gigabit LAN PHY, Intel® 82583V PCI-E Gigabit LAN

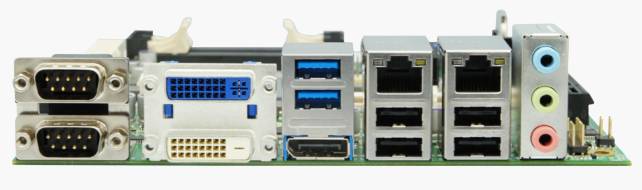

2x RJ-45 on board

I/O Chipset

Fintek F81846AD-I

3x RS232, 1x RS-232/422/485 (jumper-less select), 4x SATA II,2x SATA III


4 ports onboard, 2 ports via pin-header (USB 2.0)

2 ports onboard, 2 ports via pin-header (USB3.0)


Intel® QM77/HM76 PCH built-in HD audio controller+ ALC892 w/ 7.1 channels


Digital I/O (4-in/4-out), ATX power connector, iSMART support


170mm x 170mm (6.7” x 6.7”)

Max. Power Requirement

3rd Generation Intel®  Core™ i3-3120ME 2.40GHz
w/ 2x 2GB DDR3-1333

+3.3V: 0.79A       +5V: 1.27A

+12V: 2.10A        +5Vsb: 0.06A

Operating Temperature

0°C~60°C (32°F~140°F)

Storage Temperature

-20°C~80°C (-4°F~176°F)

Relative Humidity

10%~90% (non-condensing)
