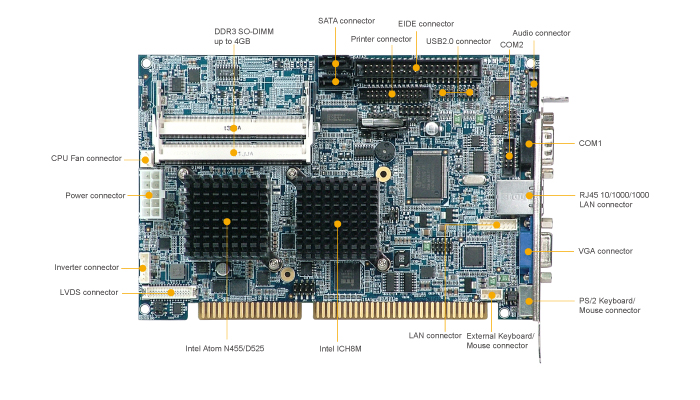

Support Intel® Atom™ N455 1.66GHz / D525 1.8GHz
processor
|
|
>
|
Memory support DDR3 SO-DIMM 800 MHz SDRAM up to
4GB
|
|
>
|
Support two 10/100/1000 Mbps Ethernet
|
|
>
|
Fanless solution (N455)
|
|
>
|
Compact flash/ IDE interface for option
|
|
|
|
Specifications
|
>>
Systems
|
|
|
CPU Support
|
Intel® Atom™
N455 / D525 processor
|
|
CPU Frequency
|
N455 (1.66GHz)
/ D525 (1.8GHz)
|
|
DRAM
|
2 x 204pin DDR3
SO-DIMM to support 667MHz (N455) /800 MHz (D525) up to 4GB
|
|
BIOS
|
AMI BIOS
|
|
Watchdog
|
1~255 secs
Watchdog timer selectable
|
|
Power Supply
|
Support AT/ATX
power
|
|
Power
Requirement
|
+5V, +12V
|
|
Power
Consumption
|
+5V : 0.63A ,
+12V : 0.58A
|
|
Dimension
|
185 mm x 122 mm
(7.28" x 4.8")
|
|
Certificate
|
FCC / CE
|
|
>>
I/O Ports
|
|
|
SATA
Interface
|
2
x S-ATA connector
|
|
IDE
Interface
|
1
x IDE connector with 40-pin pin-header on board (D525)
|
|
SSD
|
1
x Compact flash slot (IDE) (N455)
|
|
Serial Port
|
2
x COM port, 16550 UARTs RS-232, COM 1 for RS-232, COM 2 for
RS-232/422/485
|
|
Parallel Port
|
1
x Parallel port (SPP / EPP / ECP)
|
|
IrDA
|
1
(SIR)
|
|
Keyboard
|
Mini
DIN connector or external connector
|
|
Mouse
|
Mini
DIN connector (selectable w / KB) or Y-cable
|
|
LAN
|
LAN1:
Intel® 82567V GbE
LAN2: Intel® 82583V GbE
Supports Wake-on-LAN with ATX power
|
|
Audio
|
HD
audio, Realtek ALC 888S
|
|
DI/O
|
4
in / 4 out
|
|
USB
|
4
x USB 2.0
|
|
|
>>
Display
|
|
|
Graphics
|
Build-in
N455 / D525 processor, share system memory;
Supports VGA, LVDS
|
|
LCD
Interface
|
18
bit LVDS
|
|
|
>>
Environment
|
|
|
Operation
Temp.
|
0°
~ 60°C (32° ~ 140°F)
|
|
Storage
Temp.
|
-40°
~ 85°C (-40° ~ 185°F)
|
|
Humidity
|
Operation
humidity 20 ~ 90%
Storage humidity 20 ~ 95%
|
|
|
|
|
|
|
|
