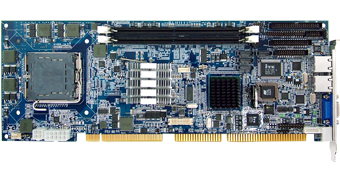

PICMG 1.0 Full Size CPU card,
supports IntelŽ Core 2 Duo, IntelŽ CeleronŽ D, IntelŽ Pentium D and
IntelŽ Pentium 4 processors
|
|
¨
|
Equipped with IntelŽ Q965
Chipset with FSB 1066MHz
|
|
¨
|
Memory supports DDRII 800
SDRAM up to 4GB
|
|
¨
|
Applications as gaming,
medical, multimedia systems, digital image storage serves and more
|
|
|
|
Specifications
|
|
¨ Systems
|
|
|
CPU Type
|
Intel Celeron D, Pentium 4,
Pentium D, Core 2 Duo, LGA-775 processor
|
|
Chipset
|
Intel Q965 + ICH8DO + FWH (FSB: 533/800/1066MHz)
|
|
DRAM
|
2 × 240-Pin DDR2-DIMM socket,
(Supports DDR2 533/667/800MHz, up to 4GB)
|
|
BIOS
|
Phoenix-Award PnP BIOS, with VGA
BIOS
|
|
Watchdog
|
1~255 secs Watchdog timer
selectable w/Reset/NMI
|
|
Power Supply
|
Support ATX power / AT Power
|
|
Power Requirement
|
+5V, +12V
|
|
Power consumption
|
+5V:3.2A / +12V:10.45A
|
|
Dimension
|
338.5 mm x 126 mm (13.33" x
4.8")
|
|
¨ I/O Ports
|
|
|
SATA Interface
|
4 x S-ATA connector (Raid 0,
1, 5, 10)
|
|
FDD Interface
|
1x FDD connector with 34-pin
Boxheader on board
|
|
IDE Interface
|
1 x 40-pin IDE (UDMA33/36/100)
|
|
Function BUS
|
1 x CF
|
|
Serial Port
|
2 x Serial ports, 16550 UARTs
RS-232 x COM1 for RS-232, COM 2 for RS-232/422/485
|
|
Parallel Port
|
1 x Parallel Port
(SPP/EPP/ECP)
|
|
IrDA
|
1 (SIR)
|
|
Keyboard
|
Mini DIN connector
|
|
Mouse
|
Mini DIN connector
|
|
LAN
|
Lan1: Marvell 88E8052, 1G
BaseTx Ethernet
Lan2: Marvell 88E8052, 1G BaseTx Ethernet
|
|
Audio
|
Realtek ALC262 with Line-in /
Line-out/ MIC
|
|
USB
|
4 x USB 2.0
|
|
|
¨ Display
|
|
|
Graphics
|
Built-in Intel Q965, share
system memory, supports CRT, LVDS(LVDS transfer from SDVO)
|
|
|
¨ Environment
|
|
|
Operation Temperature
|
0°~60°C(32°~140°F)
|
|
Storage Temperature
|
-40°~85°C(-40°~185°F)
|
|
Humidity
|
Operation Humidity 20~90%,
Storage Humidity 20~95%
|
|
|
|
|
|
|
|
|
