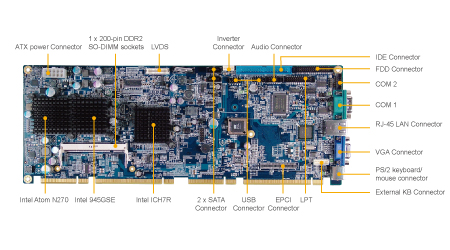

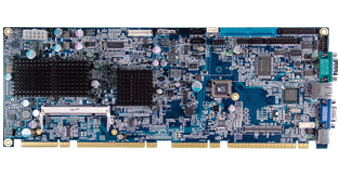

IPC-FP589B

Intel ATOM PICMG 1.3 CPU Card w/ VGA/Sound/LAN



Features

>

PICMG 1.3 Full size CPU card supports Intel Atom N270 1.6GHz processor with 533MHz FSB

>

Memory Support one SO-DIMM socket, up to 2GB single channel 400/533MHz DDR2 memory

>

Intel 945GSE integrated 3D graphics engine GMA950 chipset with CRT and LVDS display

>

Support 1 x LAN, Audio, 2 x Serial Port, 1 x Parallel Port

>

SATA port Supports Raid 0,1,10,5



 Specification

>> Systems



CPU Type

Intel Atom N270 1.6GHz processor

CPU Frequency

1.6 GHz

Chipset

Intel 945GSE + ICH7R (FSB: 533MHz)

DRAM

1 x 200-pin DDR2 SO-DIMM socket, support single channel 400/533 MHz DDR2 memory up to 2GB

BIOS

PhoenixAward PnP BIOS Memory size 8 Mbytes

Watchdog

1~255 secs Watchdog timer selectable w /Reset/ NMI

Power Supply

Support ATX / AT Power

Power Requirement

+5V, +12V, +3.3V, +5Vsb

Power Consumption

+12V: 0.24A/ +3.3V: 1.03A/ +5V:2.85A/ 5VSB:0.22A

Dimension

338.5mm x 126mm (13.33" x 4.96")

>> I/O Ports



IDE Interface

1 x IDE connector with 40-pin Boxheader (UDMA100)

SATA Interface

4 x SATA connector (From ICH7R, Support RAID 0,1,10,5) 2 ports on board, 2 ports signal via SHB to backplane

SSD

1 x CF (via IDE 2nd)

FDD Interface

1 x FDD connector with 34-pin Boxheader

Expansion BUS

1 x EPCI BUS

Serial Port

2 x COM port, 16550 UARTs RS-232


Parallel Port

1 x parallel Port (SPP / EPP / ECP)

Keyboard

Mini DIN connector or external connector

Mouse

Mini DIN connector (selectable w/KB) or Y-cable

LAN

Single Port: LAN 1:Intel 82541PI (10/100/1000Mbps)
Supports Wake-on-LAN with ATX power

Audio

High Definition Audio
Reatel ALC888, with Mic / Line-out / Line-in

USB

8 x USB 2.0
4 ports pinheader in board
4 ports singals via SHB C to backplane

>> Display



Graphics

Built-in Intel 945GSE, share system memory, Support CRT (QXGA: 2048 x 1536), LVDS

LCD Interface

2CH x 18-bits, support UXGA (1600 x 1200)

>> Environment



Operation Temp.

0~60C(32~140F)

Humidity

Operation Humidity 20~90%, Storage Humidity 20~95%



RoHs

RoHs Version

Dimension

Full Size (PICMG 1.3)

CPU

Intel Atom N270 1.6GHz on board

Chipset

Intel 945GSE + ICH7M + FWH

Memory Type

(1) 200Pin SO-DIMM DDR2 socket; support 533MHz up to 2GB

BIOS

PhoenixAward PnP BIOS, memory size 4/8 Mbytes, with VGA BIOS

RTC

Build in South Bridge

VGA

  • Build-in 945GSE; support CRT, LVDS, TV
  • (1) DB-15 on bracket
  • LVDS: support 18-bit LVDS
  • TV: boxheader on board

LAN

  • Dual Ports on bracket
  • LAN1: Use one Intel 82562V to support 10/100Mbps
  • LAN2: Use one Intel 82573L with PCI-E x1 to support 100/1000Mbps speed

Audio

High Definition Audio with Realtek ALC888







SATA

  • (2) ports S-ATA. Support RAID 0,1
  • (2) connectors are on SHB

IDE

  • (1) 40pin IDE
  • (1) CompactFlash (2nd IDE)

FDD

(1) FDD connector

Serial Port

(2) port, 16550 UARTs RS-232; COM1 for RS-232, COM2 for RS-232/422/485

Parallel

One port

USB

  • (8) port, support USB 2.0
  • (6) connectors are on SHB
  • (2) on bracket
  • (4) on box-header

Keyboard

External connector (1x5-pin box header) with mini DIN cable; support Y-cable

Mouse

With mini DIN connector (selectable with KB DIN connector)

Speaker

Internal buzzer

LED indicator

HDD LED, Power LED

Hardware monitor

Voltage, CPU temperature and cooling fan speed (CPU, System)

Watchdog

1~255 Level (selection sec. or minute)

Power Supply

Support AT/ATX

Temperature

  • Operation temperature 0 ~ 60C
  • Storage temperature -40 ~ -85C

Humidity

Operation humidity 10 ~ 95%, storage humidity 5 ~ 95%
