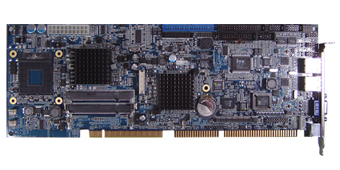

IPC-FP511R-LG Socket 478 Pentium M CPU Card w / VGA / Audio / 2LAN



   FEATURES
> Support Pentium M / Celeron M CPU up to 2.06GHz
> Equipped with Intel 915GME Chipset with FSB 533MHz
> Memory Supports DDR 533 SDRAM up to 2GB
> Support Compact Flash
> Support 2 Gigabit LAN ports with Wake-on-LAN
   Specifications
>> Systems
CPU Support Intel Pentium M / Celeron M processor
CPU Frequency 1.3~2.06 GHz
Chipset Intel 915GME + ICH6M (FSB: 400/533MHz)
DRAM 2 x 200-pin DDR So-DIMM, support DDR2 533 SDRAM up to 2GB
BIOS Phoenix-Award PnP BIOS, with VGA BIOS
Watchdog 1~255 secs Watchdog timer selectable w / Reset / NMI
Power Supply Support AT / ATX power
Power Requirement +5V, +12V, -12V
Power Consumption +5V : 3.69A / +12V : 2.37A (Pentium M 1.8GHz)
Dimension 338.5mm x 122mm (13.33" x 4.8")

>> I/O Ports
IDE Interface 1 x 40-pin IDE (UDMA 33/66/100)
CF 1 x compact flash slot (IDE)
FDD Interface 1
Bus Interface EPCI BUS
Serial Port 2 x COM ports, COM1 for RS232,COM2 for RS232/422/485
( for 16550 compatible type of UART)
Parallel Port 1 x parallel (SPP / EPP / ECP)
IrDA 1 (SIR)
Keyboard Mini DIN connector or external connector
Mouse Mini DIN connector (selectable w / KB) or Y-cable
LAN LAN 1: Marvell 8052 (10/100/1000 Mbps)
LAN 2: Marvell 8052 (10/100/1000 Mbps)
Support Wake-on-LAN wtih ATX power
Audio AC '97 Codec, Realtek ALC202A With Line-in / Line-out / MIC
USB 6 x USB 2.0
S-ATA Interface 2
Digital I/O 8-in/8-out

>> Display
Graphics Built-in Intel 915GME, share system memory, support CRT, LVDS, DVI
LCD Interface 18/36-bit LVDS

>> Environment
Operation Temperature 0~60C(32~140F)
Storage Temperature -40~85C(-40~185F)
Humidity Operation Humidity 20~90%, Storage Humidity 20~95%
