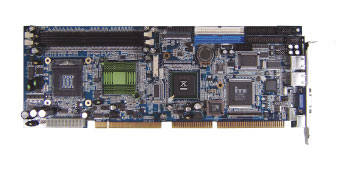

IPC-FP501R-LG Socket 478 Pentium M CPU card w/VGA/Sound/2LAN



   FEATURES
> AT power support
> VGA built-in Intel 855GME chipset for economical solution
> EPCI function makes the card more flexible and expandable (optional)
> DDR SDRAM up to 2GB
> Built-in compact flash slot
> 4 x USB2.0
   Specifications

>> Systems
CPU Type Intel Pentium M processor
CPU Frequency 1.3~2.0 GHz
Chipset Intel 855GME + ICH4
DRAM 2x184-pin DDR DIMM, support DDR266 SDRAM up to 2GB
BIOS Phoenix-Award PnP BIOS, with VGA BIOS
Watchdog 1~255 secs Watchdog timer selectable w/Reset/NMI
Power Supply Support AT/ATX power
Power Requirement +5V, +12V, -12V
Power Consumption +5V:2.8A / +12V: 1.93A (Pentium M 1.3GHz)
Dimension 338.5mm x 122mm (13.33" x 4.8")
>> I/O Ports
IDE Interface 2x40-pin IDE (UDMA 33/66/100)
CF 1 x compact flash slot (IDE)
FDD Interface 1
Bus Interface EPCI BUS
Serial Port 2 x COM ports, COM1 for RS232, COM2 for RS232/422/485
(for 16550 compatible type of UART)
Parallel Port 1 x parallel (SPP/EPP/ECP)
IrDA 1 (SIR)
Keyboard Mini DIN connector or external connector
Mouse Mini DIN connector (selectable w/ KB) or Y-cable
LAN LAN 1: Intel 82562EM (10/100Mbps)
LAN 2: Intel 82541GI (10/100/1000Mbps)
Support Wake-on-LAN with ATX power
Audio AC '97 Codec, Realtek ALC202A with Line-in/Line-out/MIC
USB 4 x USB 2.0
>> Display
Graphics Built-in Intel 855GME, share system memory
Support CRT, LVDS
LCD Interface 18/36-bit LVDS, DVO

>> Environment
Operation Temperature 0~60C(32~140F)
Storage Temperature -40~85C(-40~185F)
Humidity Operation Humidity 20~90%, Storage Humidity 20~95%
