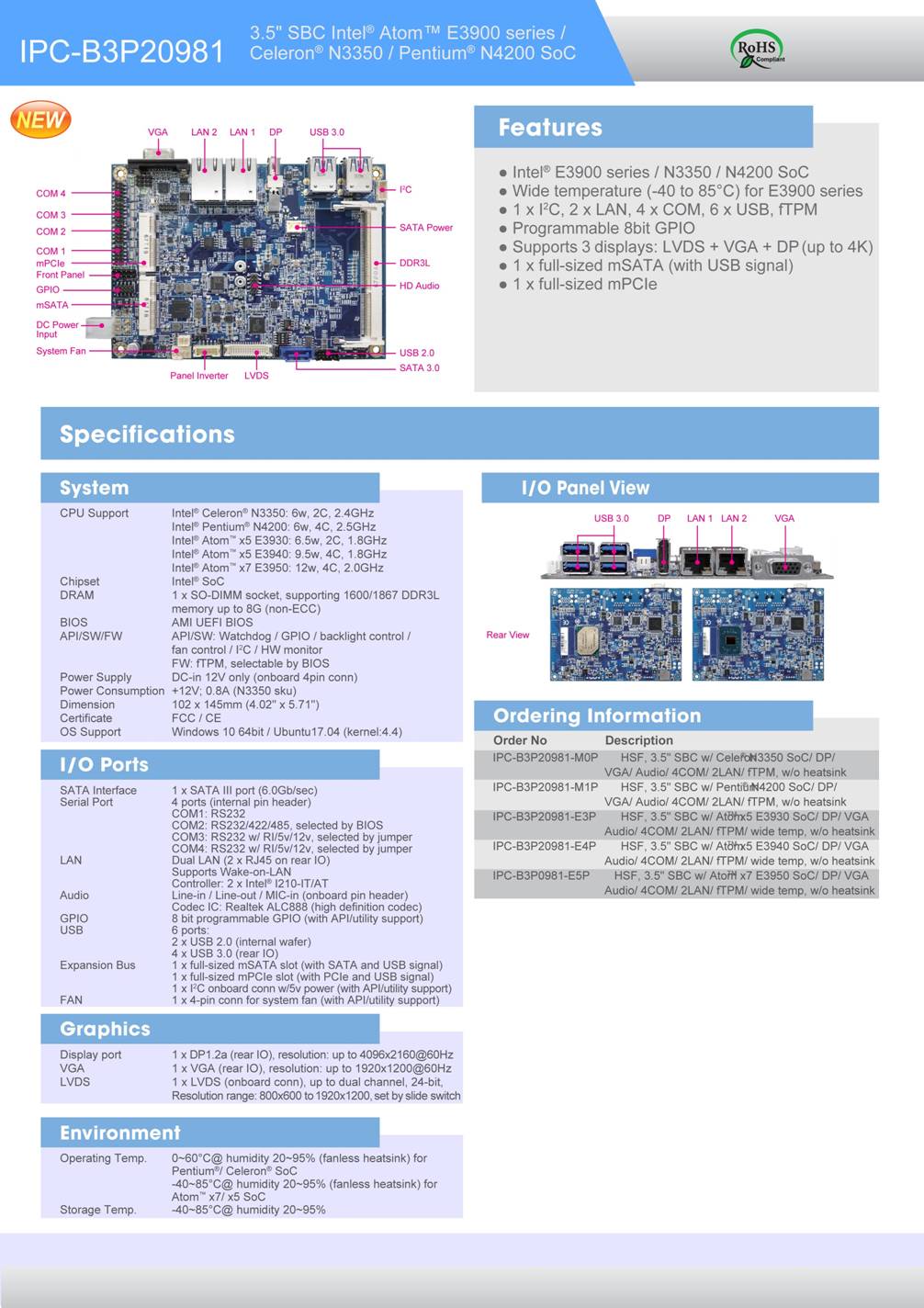

IPC-B3P20981

3.5" SBC w/ Intel® Atom™ x5/ x7/ Celeron®/ Pentium® SOC





      FEATURES





>Intel® latest Embedded SOC (minimum: 6W TDP)

>Wide temperature (-40 to 85°C) for Atom sku

>I2C + 2 LAN + 4COM + 6USB

>Programmable 8bit DIO

>3 display: LVDS + VGA + DP (up to 4K)

>1 full-sized mSATA (with USB signal)

>1 full-sized mPCIe



   Specifications



CPU Support

Intel® SOC

CPU Frequency

Intel® Celeron® N3350: 6w, 2C, 2.4Ghz , Intel® Pentium® N4200: 6w, 4C, 2.5Ghz , Intel® AtomTM x5 E3930: 6.5w, 2C, 1.8Ghz , Intel® AtomTM x5 E3940: 9.5w, 4C, 1.8Ghz , Intel® AtomTM x7 E3950: 12w, 4C, 2.0Ghz

Chipset

Intel® SOC

DRAM

1 x SO-DIMM socket, supporting 1600/1867 DDR3L memory up to 8G (non-ECC)

BIOS

AMI UEFI BIOS

API

Watchdog / DIO / Backlight Control / Fan Control / I2C / HW monitor

Power Supply

DC-in 12V only (onboard 4pin conn)

Power Consumption

+12V; 0.8A (N3350 sku)

Dimension

102 x 145mm (4.02" x 5.71")

Certificate

FCC / CE

OS Support

Windows 10 64bit / Ubuntu16.04 (kernel:4.4)

SATA Interface

1 x SATA III port (6.0Gb/sec)

Serial Port

4 ports (internal pin header) COM1: RS232 , COM2: RS232/422/485, selected by BIOS , COM3: RS232 w/ RI/5v/12v, selected by jumper , COM4: RS232 w/ RI/5v/12v, selected by jumper

LAN

Dual LAN (2 x RJ45 on rear IO) , Supports Wake-on-LAN , Controller: 2 x Intel® I210-IT/AT

Audio

Line-in / Line-out / MIC-in (onboard pin header) , Codec IC: Realtek ALC888 (high definition codec)

Digital I/O

8 bit programmable DIO (with API / utility support)

USB

6 port:2 x USB 2.0 (internal wafer) , 4 x USB 3.0 (rear IO)

Expansion Bus

1 x full-sized mSATA slot (with SATA and USB signal) , 1 x full-sized mPCIe slot (with PCIe and USB signal) , 1 x I2C onboard conn w/ 5v power (with API / utility support)

FAN

1 x 4-pin conn for system fan (with API / utility support)

Display port

1 x DP1.2a (rear IO), resolution: up to 4096x2160@60Hz

VGA

1 x VGA (rear IO), resolution: up to 1920x1200@60Hz

LVDS

1 x LVDS (onboard conn), Up to dual channel, 24-bit, Resolution range: 800x60 to 1920x1200, set by slide switch

Operating Temp.

0~60 °C@ humidity 20~95% (fanless heatsink) for Pentium®/ Celeron® SOC , -40°~85°C@ humidity 20~95% (fanless heatsink) for AtomTM x7/ x5 SOC

Storage Temp.

-40°~85°C@ humidity 20~95%
