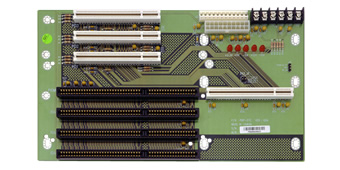

IPC-B-7PPA

7-slot Backplane with 1-PICMG / 3-PCI / 3-ISA




   FEATURES
  • 1 PICMG, 3 ISA, 3 PCI Bus Slots
  • AT compatible 12-pin power connector (P8/P9)
  • 20-pin ATX power connector
  • 3-pin ATX signal (PS-On, Gnd, 5V SB) connector
  • With LED power indicators for +5V, +12V, +3.3V
  • Heavy duty terminal block connectors
  • 4-layer PCB for high noise immunity construction
   Specifications

>> System Architecture

For 7-slot chassis



>> Dimension

264mm x 150mm, 10.39" x 5.91"



>> Slot

1 x PICMG 1.1

       3 x PCI 32bit/33MHz

       3 x PCI



>> Power Input

        1 x  20-Pin ATX power connector

        1 x Terminal Block

       1 x P8/P9 AT power connector



>> Environment

      Operation Temperature                           0C ~60C (32~140F)

      Storage Temperature                               -20C ~80C

      Humidity                                                 10~90%,
