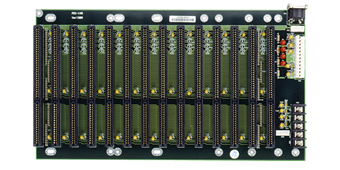

IPC-B-14

14-ISA slot  Backplane



   FEATURES
  • 14 ISA Bus Slots
  • AT compatible 12-pin power input connector (P8/P9)
  • One AT Keyboard connector on board
  • Two 5-pin external keyboard connectors
  • With LED power indicators for +5V, -5V, +12V, -12V
  • Heavy duty terminal block connectors
  • 4-layer PCB for high noise immunity construction
   Specifications



>> Dimension

311.2mm x 175.3mm, 12.25" x 6.9"

>> Slot

14 x ISA

>> Power Input

        1 x P8/P9 AT power connector

        1 x Heavy duty terminal block connectors



>> Environment

      Operation Temperature                           0C ~60C (32~140F)

      Storage Temperature                               -20C ~80C

      Humidity                                                 10~90%,
