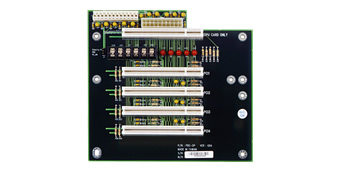

IPC-B-05C

5-PCI slot Backplane



   FEATURES
  • 1 PCI System Bus; 4 PCI expansion Bus Slots
  • AT compatible 12-pin power input connector (P8/P9)
  • 20-pin ATX power connector
  • With LED power indicators for +5V, +12V, +3.3V
  • 4-layer PCB for high noise immunity construction
  • Dimensions: 175mm x 160mm, 6.89" x 6.3"
  • Support ATX Power Supply
   Specifications



>> Dimension

175mm x 160mm, 6.89" x 6.3"



>> Slot

5 x PCI



>> Power Input

        1 x  20-Pin ATX power connector

        1 x P8/P9 AT power connector



>> Environment

      Operation Temperature                           0C ~60C (32~140F)

      Storage Temperature                               -20C ~80C

      Humidity                                                 10~90%,
