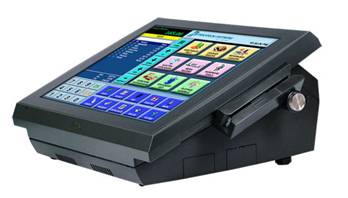

AIO-P6822

The One-of-a-kind Highly Integrated 15" POS Terminal





  FEATURES

>

IntelŪ Celeron J1900 CPU

>

15" LCD display with bezel-free touchscreen

>

Flexible design for versatile applications

>

Optional 2"/ 3" thermal printer

>

Optional MSR, i-Button, RFID & fingerprint module

>

Small footprint & Streamline design

>

IntelŪ Celeron J1900 CPU

>

15" LCD display with bezel-free touchscreen

>

Flexible design for versatile applications

>

Optional 2"/ 3" thermal printer







   Specifications





>>Systems



CPU Support

IntelŪ Celeron J1900 (Quad-Core)

Memory

One Slot DDR3L SO-DIMM (up to 8GB)

Network

10/100/1000 Base-T Fast Ethernet

Power Supply

72~120Watt power adapter

Audio

2W speaker

System Weight

with power adaptor approx. 8kg

Dimension

390mm x 320mm x 190mm

O.S. Support

WIN8 /POSReady7



>>Storage



SATA

1 x 2.5" HDD or SSD

mSATA

1 x SSD



>>I/O Ports



USB

3 x USB on rear, 1 x USB on side bezel

Serial Ports

3 x DB-9 (+5V/ 12V selectable)

eSATA & USB

1 x eSATA & USB

LAN

1 x RJ45

VGA

1 x DB15

Cash Drawer

1 x RJ11 (+12V or +24V selectable)

Optional

1 x DB9 COM or 1 x DB-25 Printer Port



>>Optional



Customer Display

VFD, 20 columns and 2 lines, each column is 5 x 7 dots

Printer

2" or 3" easy loading thermal printer with Auto cutter

MSR & iButton

ISO I,II,III; JIS I,II and support information key

RFID

ISO14443A, Mifare, Felica-Lite

2nd Display

8" or 10.4" LCD

Fingerprint

8-bit grayscale, reader



>>Display



LCD

15" TFT LCD

Resolution

1024 x 768

Brightness

250 cd/mē

Touch Screen

Bezel-Free 5-wire Analog resistive



>>Environment



EMC & Safety

CE / FCC

Operating Temp.

0 ~ 35° C

Storage Temp.

-20 ~ 60° C

Humidity

20 ~ 90%
