AIO-P6810

The One-of-a-kind Highly Integrated 15" RISC POS Terminal

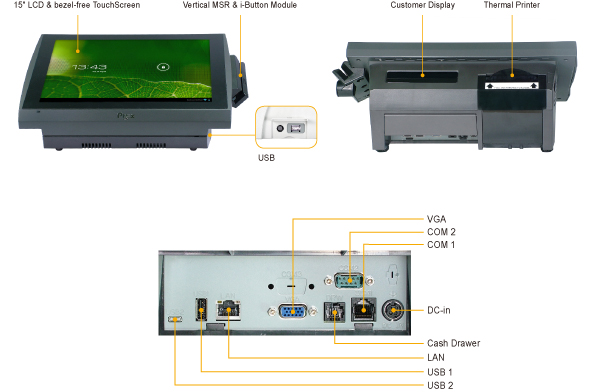

  FEATURES

>

nVIDIA Tegra 3 CPU & Android 4.1

>

15" LCD display with bezel-free touchscreen

>

Flexible design for versatile applications

>

Optional V.F.D. 20 columns and 2 lines

>

Optional 2"/3" easy loading thermal printer

>

Optional MSR. i-Button & RFID reader

>

Small footprint & Streamline design







   Specifications



>>Systems



CPU Support

nVIDIA Tegra 3 (Single-Core: 1.3GHz; Quad-Core: 1.2GHz)

Flash

8GB eMMC (on board)

Memory

DDRIII 1GB (on board)

Network

10/100 Mbps Ethernet

Power Supply

36~72Watt power adaptor

System Weight

with power adaptor approx. 8.5kg

Dimension

390mm x 320mm x 190mm

O.S. Support

Android 4.1



>>I/O Ports



USB

2 x USB (1 x USB Type A; 1 x Micro USB, for OTG)
1 x USB on side bezel (USB Type A)

Serial Ports

1x DB-9 (COM2, Full COM, for reserve)
1x RJ45 (COM1,RX,TX,RTS,CTS, supports embedded VFD)
2 x Wafer on board:
(COM4, RX,TX,RTS,CTS, supports embedded printer)
(COM5, RX,TX,RTS,CTS, supports embedded MSR)
5/12V Selectable (COM1/2/5)

VGA

1 x DB-15 VGA interface

Cash Drawer

1 x RJ11 Cash Drawer port (12V/24V)

DC-in

4pin DC power jack



>>Display



LCD

15" TFT LCD

Max. Resolution

1024 x 768

Brightness

250 cd/m

Touch Screen

5-wire Analog resistive

Tilt Angle

24 ~ 30 degrees



>>Environment



Operating Temp.

0~35C(32~95F)

Storage Temp.

20~60C(-4~140F)

Humidity

20~90%
