FEATURES
|
>
|
IntelŪ Celeron
J1900 CPU
|
|
>
|
10.4" LCD
display with touch
|
|
>
|
Flexible
design for versatile applications
|
|
>
|
Optional
2"/3" easy loading thermal printer
|
|
>
|
Optional MSR. i-Button & Fingerprint & RFID
|
|
>
|
Small
footprint and Streamline design
|
|
>
|
IntelŪ Celeron
J1900 CPU
|
|
>
|
10.4" LCD
display with touch
|
|
>
|
Flexible
design for versatile applications
|
|
>
|
Optional
2"/3" easy loading thermal printer
|
|
|
|
|
|
Specifications
|
>>Systems
|
|
|
CPU Support
|
IntelŪ Celeron J1900
(Quad-Core)
|
|
Memory
|
One Slot DDR3L SO-DIMM
(up to 8GB)
|
|
Network
|
10/100/1000 Base-T Fast
Ethernet
|
|
Power Supply
|
72~120Watt power adapter
|
|
Audio
|
2W speaker
|
|
System Weight
|
with power adaptor
approx. 6kg
|
|
Dimension
|
315 x 320 x 160 mm
|
|
O.S. Support
|
WIN8 / POSReady7
|
|
>>Storage
|
|
|
SATA
|
1 x 2.5" HDD or
SSD
|
|
mSATA
|
1 x SSD
|
|
|

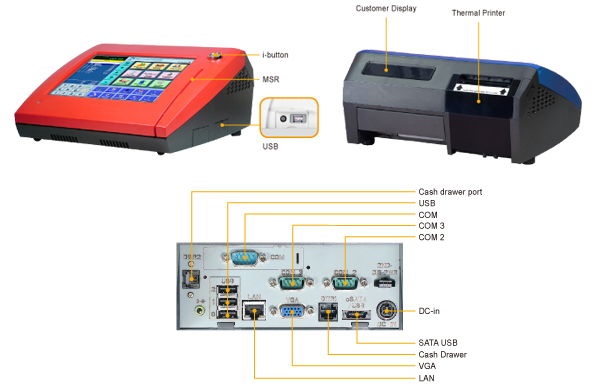

>>I/O Ports
|
|
|
USB
|
3 x USB on rear, 1 x
USB on side bezel
|
|
Serial Ports
|
3 x DB-9 (+5V/ 12V
selectable)
|
|
eSATA & USB
|
1 x eSATA & USB
|
|
LAN
|
1 x RJ45
|
|
VGA
|
1 x DB-15
|
|
Cash Drawer
|
1 x RJ11 (+12V or +24V
selectable)
|
|
Optional
|
1 x DB9 COM or 1 x
DB-25 Printer
Port
|
|
|
>>Optional
|
|
|
Customer Display
|
VFD kit, 20 columns
and 2 lines, each column is 5 x 7 dots
|
|
Printer
|
2" or 3"
easy loading thermal printer with Auto cutter
|
|
MSR & iButton
|
ISO I,II,III; JIS I,II
and support information key
|
|
RFID
|
ISO14443A Read /Write;
ISO18092 Read only
|
|
Fingerprint
|
8-bit grayscale,
reader
|
|
|
>>Display
|
|
|
LCD
|
10.4" TFT LCD
|
|
Max. Resolution
|
1024x768 /800x600
|
|
Brightness
|
400 /230 cd/mē
|
|
Touch Screen
|
5-wire Analog
resistive
|
|
Tilt Angle
|
24 ~ 30 degrees
|
|
|
>>Environment
|
|
|
EMC & Safety
|
CE / FCC
|
|
Operating Temp.
|
0 ~ 35° C
|
|
Storage Temp.
|
-20 ~ 60° C
|
|
Humidity
|
20 ~ 90%
|
|
|
|
|
