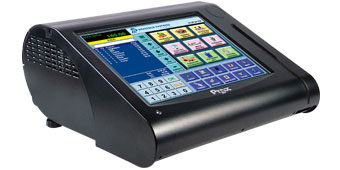

FEATURES
|
>
|
Intel® Core™ i3-2120 CPU
|
|
>
|
10.4" LCD display with touchscreen
|
|
>
|
Flexible design for versatile applications
|
|
>
|
Optional 2"/3" easy loading thermal
printer
|
|
>
|
Optional MSR, i-Button
& fingerprint module
|
|
>
|
Small footprint
|
|
>
|
Streamline design
|
|
>
|
Intel® Core™ i3-2120 CPU
|
|
>
|
10.4" LCD display with touchscreen
|
|
>
|
Flexible design for versatile applications
|
|
|
|
|
|
Specifications
|
>>Systems
|
|
|
CPU Support
|
Intel® CPU series
Core™ i3-2120 3.3 GHz, L2 Cache-3MB
Pentium® G850 2.9GHz, L2 Cache-3MB
Celeron® G530 2.4GHz, L2 Cache-2MB
|
|
Memory
|
1 x DDR3 SO-DIMM Slot (up
to 8GB)
|
|
Core Logic
|
Intel® H61
|
|
Network
|
10/100/1000 Base-T Fast
Ethernet
|
|
Power Supply
|
120~150 watt power adapter
|
|
System Weight
|
4.5 kg
|
|
Dimension (W x H x D)
|
300x 299 x 135 mm
|
|
O.S. Support
|
POSReady2009 /POSReady7
/WINXP /WIN7
|
|
HDD
|
1 x 2.5" SATA HDD
|
|
SD/MMC
|
1 x SATA half-slim type
SSD
|
|
EMC & Safety
|
CE / FCC
|
|

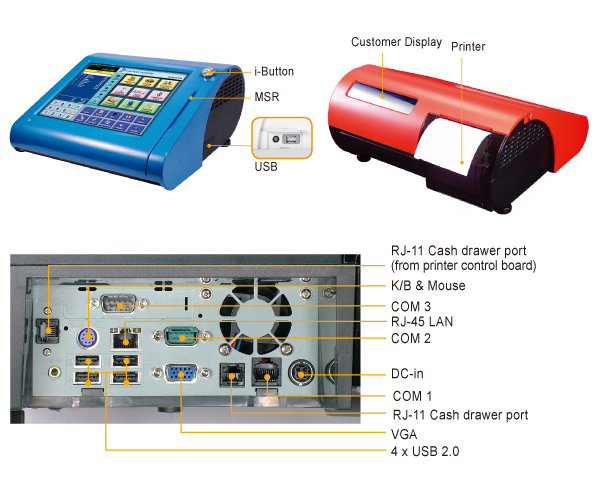

>>I/O Ports
|
|
|
USB
|
4 x USB 2.0 ports / 1 x
USB 2.0 on side bezel
|
|
Serial Ports
|
2 x DB-9 (COM 2/3), 1 x
RJ45 (COM 1),+5V/12V selectable
|
|
PS/2
|
1 x PS/2 ports (default
at keyboard)
|
|
LAN
|
1 x RJ-45
|
|
VGA
|
1 x DB-15 VGA interface
|
|
Cash Drawer
|
1 x RJ11 (+12V or +24V
selectable)(default at +12V)
|
|
DC in
|
Link from power adapter
|
|
Printer
|
2" or 3" easy
loading thermal printer with auto cutter
|
|
Option
|
1 x DB-25 printer port
|
|
|
>>Display
|
|
|
LCD
|
10.4" TFT LCD
|
|
Max. Resolution
|
1024 x 768 / 800 X 600
|
|
Brightness
|
300 cd/m˛ / 230 cd/m˛
|
|
Touch Screen
|
5-wire Analog resistive
|
|
Tilt Angle
|
24~30 degrees
|
|
|
>>Environment
|
|
|
Operating Temp.
|
0°~35°C(32°~95°F)
|
|
Storage Temp.
|
20°~60°C(-4°~140°F)
|
|
Humidity
|
20~90%
|
|
|
|
