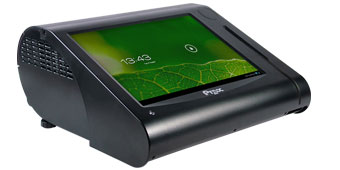

AIO-P3110

The One-of-a-kind Highly Integrated Fanless 10.4" RISC POS Terminal





  FEATURES

>

nVIDIA Tegra3 CPU & Android 4.1

>

10.4" LCD display with touch

>

Flexible design for versatile applications

>

Fanless POS

>

Optional 2"/3" easy loading thermal printer

>

Small footprint

>

Streamline design

>

nVIDIA Tegra3 CPU & Android 4.1

>

10.4" LCD display with touch

>

Flexible design for versatile applications







   Specifications





>>Systems



CPU Support

nVIDIA Tegra3 Qual Core 1.2GHz CPU

Memory

DDR3 1GB (on board)

Flash

8GB eMMC (on board)

Network

10/100 Mbps

Power Supply

30~72Watt power adapter

System Weight

4.5 kg (Fanless)

Dimension (W x H x D)

300 X 299 X 135 mm (11.81" X 11.77" X 5.31")

O.S. Support

Android 4.1

SSD

Standard SDHC (up to 32GB)

EMC & Safety

CE / FCC



>>I/O Ports



USB

3 x USB, rear x 2 (OTG/ type A), side x 1 (type A)

Serial Ports

1 x DB-9 (Full COM x 1), 1 x RJ-45 (RX, TX, RTS,CTS), 2 x internal wafer (RX, TX, RTS, CTS),
All support +5V/12V selectable

LAN

1 x 10 / 100 Mbps

VGA

1 x DB-15 VGA interface

Audio

1 x 2W speaker

Cash Drawer

1 x RJ11 Cash Drawer port (12V/24V)

Printer

2" or 3" easy loading thermal printer with Auto cutter



>>Display



LCD

10.4" TFT LCD

Max. Resolution

1024 x 768 / 800 x 600

Brightness

300 / 230 cd/m

Touch Screen

5-wire Analog resistive

Tilt Angle

24 ~ 30 degrees



>>Environment



Operating Temp.

0~35C(32~95F)

Storage Temp.

20~60C(-4~140F)

Humidity

20~90%
