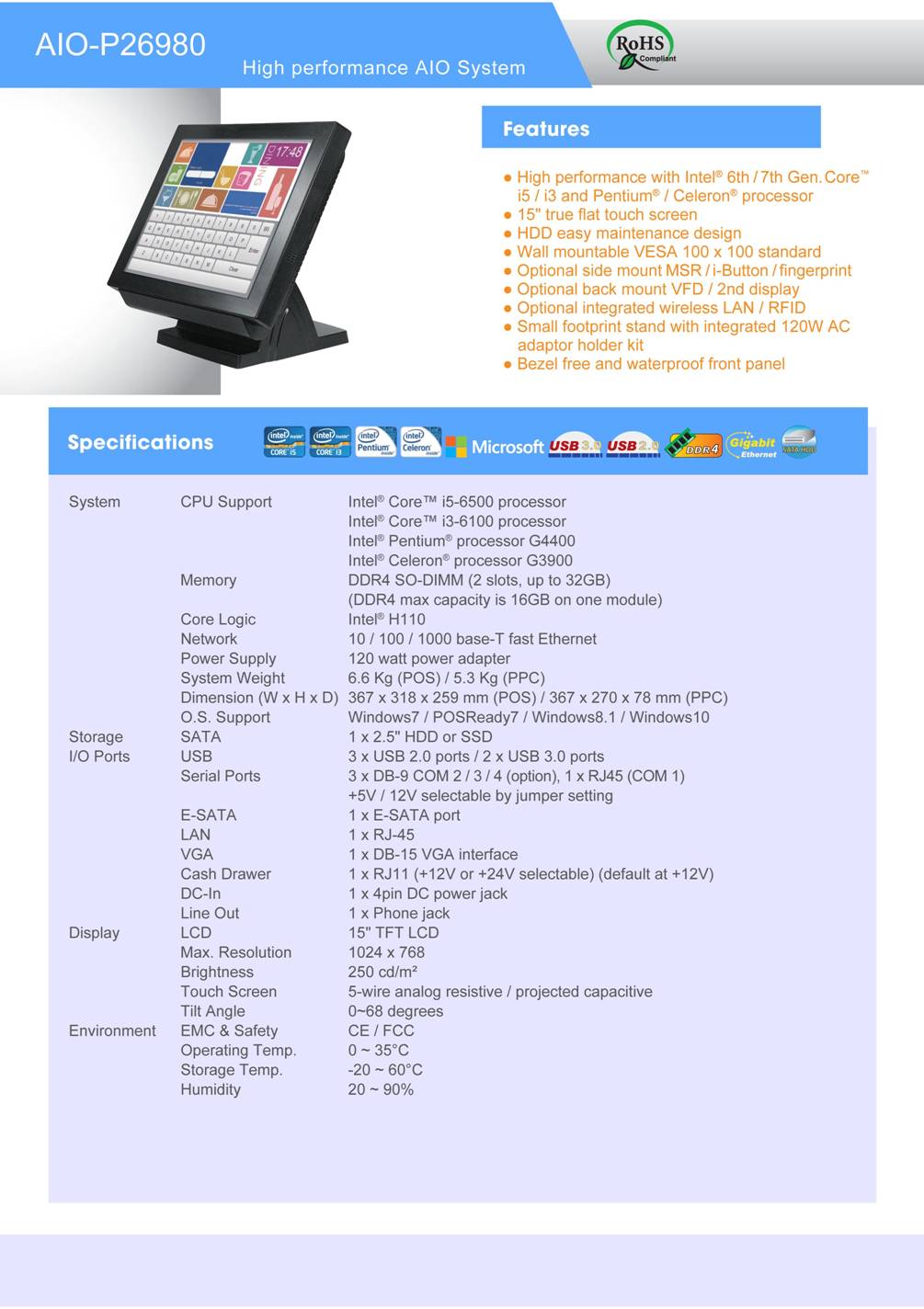

AIO-P26980

The High Performance AIO Terminal







   FEATURES



> High performance with Intel Core 6th generation CPU

> Supports 2x DDR4 SO-DIMM sockets, up to 32GB

> 15" true flat touch screen

> HDD easy maintenance design

> Wall-mountable VESA 100 x 100 standard

> Optional side mount MSR / i-Button / Fingerprint

> Optional back mount VFD / 2nd display

> Optional integrated wireless LAN / RFID

> Small footprint stand with Integrated 120W AC adaptor holder kit

> Bezel free and waterproof front panel











Specifications



>> Systems



CPU Support

Intel® Core™ i5-6500 Processor TDP 65W
Intel® Core™ i3-6100 Processor TDP 51W
Intel® Celeron® Processor G3900 TDP 51W

Memory

DDR4 SO-DIMM(2 slots, up to 32GB)
(DDR4 max capacity is 16GB on one module)

Core Logic

Intel® H110 chipset

Network

10/100/1000 Base-T Fast Ethernet

Power Supply

120 Watt power inside

System Weight

6.6 KG (POS) / 5.3KG (PPC)

Dimension (W x H x D)

367.49 x 281.95 x 303.04 mm (Normal Stand POS)
367.49 x 281.95 x 74.88 mm (PPC)

O.S. Support

POSReady7 /Windows Embedded 8.1 / Windows

Dimension (W x H x D)

300 x 94 x 270 mm

Certificate

FCC / CE



>> I/O Ports



USB

3x USB 2.0 ports / 2 x USB 3.0 ports

Serial Ports

3 x DB-9 COM 2/3/4(option), 1 x RJ45 (COM 1),+5V/12V selectable by jumper setting

E-SATA

E-SATA port x 1

SATA

1 x 2.5" SATA HDD or SSD

LAN

1 x RJ-45

VGA

1 x DB-15 VGA interface

Cash Drawer

1 x RJ11 (+12V or +24V selectable)(default at +12V)

DC in

1 x 4pin DC Power Jack

Line out

1 x phone jack







>> Display



LCD

15" TFT LCD

Max. Resolution

1024 x 768

Brightness

250 cd/m˛

Touch Screen

5-wire Analog resistive / P-CAP

Tilt Angle

0~68 degrees



>> Environment



Operation Temperature

HDD: 0°C ~ 40°C ( 32°F ~ 104°F )

Storage Temperature

- 20°C ~ 60° C ( - 4°F ~ 140° F )

Humidity

20% ~ 90%
