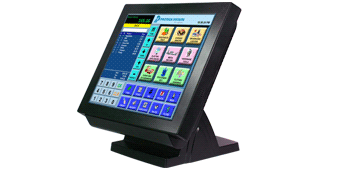

FEATURES
|
>
|
High Performance Intel® Core™ i3-2120 3.3GHz
|
|
>
|
15" True Flat Touch Screen
|
|
>
|
Bezel Free Front Panel
|
|
>
|
HDD Easy maintenance design
|
|
>
|
Optional Side Mount MSR
/ i-Button / Fingerprint
|
|
>
|
Optional Back Mount VFD
/ 2nd Display
|
|
>
|
Optional Integrated Wireless LAN / RFID
|
|
>
|
Small Footprint with Integrated 120W AC adaptor
holder kit
|
|
>
|
Waterproof Front Panel
|
|
>
|
High Performance Intel® Core™ i3-2120 3.3GHz
|
|
|
|
|
|
Specifications
|
>>Systems
|
|
|
CPU Support
|
Intel® Core™ i3-2120
3.3 GHz, L2 Cache-3MB
Intel® Pentium® G850 2.9GHz, L2 Cache-3MB
Intel® Celeron® G540 2.4GHz, L2 Cache-2MB
|
|
Memory
|
1 x DDR3 SO-DIMM Slot
(up to 4GB)
|
|
Core Logic
|
Intel® H61
|
|
Network
|
10/100/1000 Base-T
Fast Ethernet
|
|
Power Supply
|
120 Watt power inside
|
|
System Weight
|
6.6 kg
|
|
Dimension (W x H x D)
|
367 x 318 x 259 mm
|
|
O.S. Support
|
POSReady 2009 /
POSReady 7 / WES 2009 / WES 7 / Windows XP Pro / Windows 7
|
|
HDD
|
1 x 2.5" SATA HDD
|
|
SSD
|
Optional 2.5"
SATA SSD
|
|
EMC & Safety
|
CE / FCC
|
|
>>I/O
Ports
|
|
|
USB
|
4 x USB 2.0 ports /
1 x USB 2.0 on side bezel
|
|
Serial Ports
|
3 x DB-9 (COM
2/3/4), 1 x RJ45 (COM 1),+5V/12V selectable
|
|
PS/2
|
1 x PS/2 ports
(default at keyboard)
|
|
LAN
|
1 x RJ-45
|
|
VGA
|
1 x DB-15 VGA
interface
|
|
Cash Drawer
|
1 x RJ11 (+12V or +24V
selectable)(default at +24V)
|
|
Line Out
|
1 x phone jack
|
|
|
>>Display
|
|
|
LCD
|
15" TFT LCD
|
|
Max. Resolution
|
1024 x 768
|
|
Brightness
|
250 cd/m˛
|
|
Touch Screen
|
5-wire Analog
resistive
|
|
Tilt Angle
|
0~68 degrees
|
|
|
>>Environment
|
|
|
Operating Temp.
|
0°~35°C(32°~95°F)
|
|
Storage Temp.
|
20°~60°C(-4°~140°F)
|
|
Humidity
|
20~90%
|
|
|
|
|
|
|
|
