FEATURES
|
>
|
True Fanless Design with Dual-Core Atom™ D2550
|
|
>
|
Aluminum Die casting backcover
|
|
>
|
15" True Flat Touch Screen
|
|
>
|
IP54 Housing Design without holes Exception I/O
Area
|
|
>
|

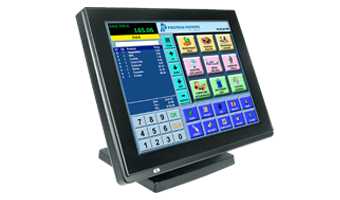

All-in-One Slim Panel PC
|
|
>
|
Small stand with Integrated Power Adapter
|
|
>
|
HDD Easy Maintenance Design
|
|
>
|
Optional MSR / i-Button / Fingerprint / VFD /
2nd Display / RFID
|
|
>
|
Optional integrated Wireless LAN
|
|
>
|
Wall-mountable VESA 75 x 75 or 100 x 100
Standard
|
|
|
|
|
|
Specifications
|
>>Systems
|
|
|
CPU Support
|
Intel® Atom™ D2550 CPU
|
|
Memory
|
2 x DDR3 SO-DIMM Slot,
Default 1GB (up to 4GB)
|
|
Core Logic
|
Intel® NM10
|
|
Network
|
10/100/1000 Base-T Fast
Ethernet
|
|
Power Supply
|
72 watt power adapter
|
|
System Weight
|
7 kg
|
|
Dimension (W x H x D)
|
377 x 308.7 x 58.35 mm
(14.8" x 12.15" x 2.3") without stand
|
|
O.S. Support
|
POSReady7 (32-bit), WES7
(32-bit)
|
|
HDD
|
1 x 2.5" SATA HDD
|
|
SSD
|
Optional 2.5" SATA
SSD
|
|
EMC & Safety
|
CE / FCC
|
|
>>I/O Ports
|
|
|
USB
|
3 x USB 2.0 ports / 1 x
USB 2.0 on side bezel
|
|
Serial Ports
|
4 x RJ45, +5V/12V
selectable
|
|
LAN
|
1 x RJ-45
|
|
VGA
|
1 x DB-15 VGA interface
|
|
Cash Drawer
|
1 x RJ11 (+12V or +24V
selectable)(default at +24V)
|
|
|
>>Display
|
|
|
LCD
|
15" TFT LCD
|
|
Max. Resolution
|
1024 x 768
|
|
Brightness
|
250 cd/m˛ LED Backlight
|
|
Touch Screen
|
True Flat 5-wire Analog
resistive or True Flat Project –Capacitive
|
|
Tilt Angle
|
0 ~ 68 degrees
|
|
|
>>Environment
|
|
|
Operating Temp.
|
0°~35°C(32°~95°F)
|
|
Storage Temp.
|
20°~60°C(-4°~140°F)
|
|
Humidity
|
20~90%
|
|
|
|
